Team Cayote CREST RS120 info

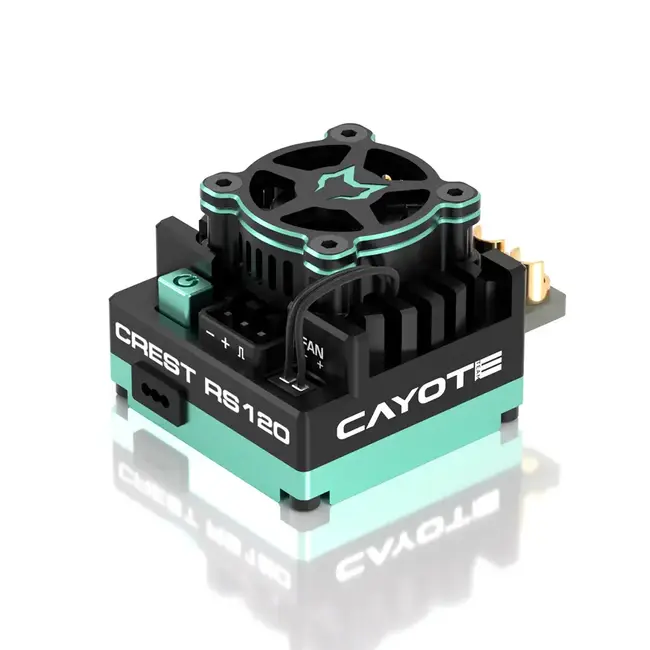

CREST RS 120 – Ultra-Light, High-Performance Speed Controller

The "Featherlight" 36g ESC, measuring 35.3mm (L) x 30.5mm (W) x 24.5mm (H), offers an impressive maximum continuous output current of 120A at an astonishing size and weight. This ESC blends lightweight design and powerful performance, designed to elevate your racing experience to higher levels.

Innovative Ultra-thin Cooling Technology

Featuring ultra-thin, windowed cooling N-MOS technology, the CREST RS 120 integrates the chip core directly with the metal housing, reducing thermal resistance by 35% compared to traditional MOSFETs. This results in higher current output while maintaining 98% efficiency and significantly reducing overall thickness within the same volume. With a thinner profile, lower operating temperature, and longer lifespan, this design transforms the space saved by eliminating heat sinks into enhanced performance, ensuring exceptional results.

Multiple Protection Features

50. Battery Low Voltage Control: Protects the ESC and motor.
51. ESC/Motor Limits and Anti-Stall Protection: Enhances reliability.
52. Built-in Reverse Polarity Protection: Prevents damage to the ESC or battery caused by incorrect polarity connections.

CREST RS 120 – Adjustable RPM Limiting (10K-88K RPM)

The CREST RS 120 ESC supports a wide RPM range from 10K to 88K RPM, with adjustable RPM limit increments of 1K RPM. RPM adjustments can be made easily through our BT-link and APP control.

Data Telemetry

With built-in offline data recording, users can track ESC performance and analyze key metrics to improve their driving strategy. This function allows racers to make precise adjustments based on real-time data, helping to optimize power output and battery usage. By reviewing recorded performance metrics using the Cayote Xlink or BT-Link connection systems (CACPB01 - sold separately), Cayote APP users can fine-tune their setup for consistent and reliable results.

Independent Drag Brake & Brake Frequency Adjustment

The CREST RS 120 ESC enables independent adjustment for drag brake and brake frequencies (0.5K-16K, in 0.5K increments). This allows precise control without interference between the two functions.

High-Performance Fan System

The CREST RS 120 is equipped with a super high-speed fan system, providing greater airflow compared to normal systems. The CNC-cut alloy frame is more durable and resistant to damage from impacts, increasing reliable cooling and enabling longer-lasting performance.

Model: CREST RS120

Continuous/Peak Current: 120A / 600A

Supported Motor Type: Sensored and Sensorless Brushless Motor

Suggested Application: Stock Class of 1/10th Touring Car & Buggy, 1/10th Drift

Motors Supported: ≥10.5T 3650 Size Motors

Number of Battery Cells: 2S LiPo

BEC Output: Ultra-stable switch V regulation 6V/7.4V; continuous current 5A / peak 8A

Fan Power: Obtain a stable 6V/7.4V from the built-in BEC

Dimensions/Weight: 35.3(L) * 30.5(W) * 24.5(H) mm / 36g

Parameter Setting Method: Xlink Programming Box / APP

3. Suggestion Application
   50. Stock Racing Blinky Mode: Complies with the no-advance timing blinking protocols set by various organizations or events.
   51. 1/10 Off-Road Mode: Tailored for 1/10 off-road/truck racing and any other off-road applications.
   52. 1/10 On-Road Mode: Optimized for 1/10 on-road racing, ensuring maximum but smooth power control.

Compatibility
 This product is fully compatible with our Xlink program box, Cayote Team App
