Special Edition R/C Product
1/10 R/C The Grasshopper II Black Edition
Item No: 47471

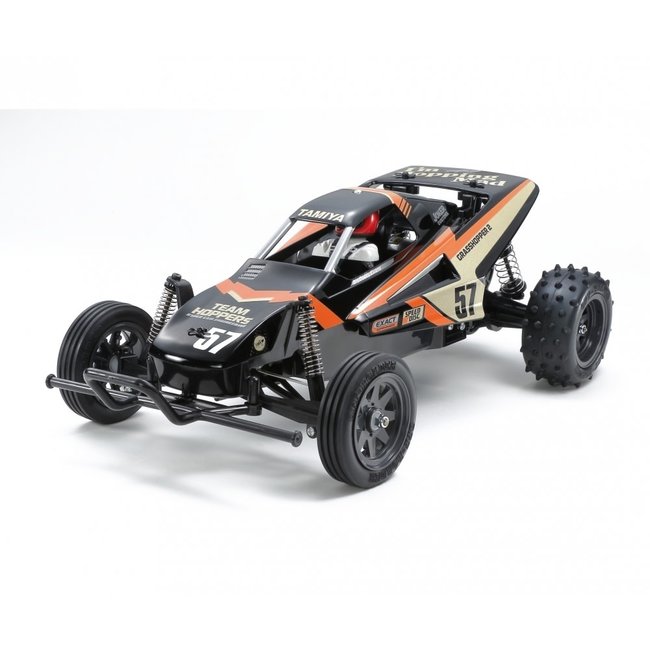

Length: 400mm. Image shows assembled kit.
| Special Hopper This assembly kit creates a special Black Edition of the Grashopper II, a nippy and fun 2WD R/C buggy. It is based upon a tough chassis with front swing axle and rear rolling rigid suspension setups with coil springs for a highly capable ride. Gray wheels provide a subtle color variation from the black body, which is molded in styrene and can be decorated with the included stickers; they feature orange and gold motifs that will really catch the eye. A driver figure is also included. |
| A Durable Off-Road Chassis A rugged ABS resin chassis is more than up to the stresses of off-road driving, and features lightweight durable plastic suspension arms, gearboxes and so on - the result is a lightweight and durable unit. Front swing axle and rear rolling rigid suspension combine for a responsive drive, while a fully enclosed gearbox is integrated with the rear axle and has a built-in differential gear to aid smooth cornering. One-piece wheels are paired with front grooved and rear spike tires for solid performance. |
 |
 |
 |
|
★Left: This image gives a closer look at the front swing axle suspension setup, which is coil sprung. The front bumper is molded plastic. ★Right: The rear gearbox is integrated with the axle case. Smooth, easy-to-handle power is provided courtesy of the Type 380 motor. |
 |
|
 |
|
★Left: Gray wheels are an excellent choice to partner the black body; they are paired with front grooved and rear spike pattern tires. ★Right: The model's battery pack is positioned longitudinally, and can be accessed efficiently from the underside of the chassis. |
| Specifications ●Length: 400mm, Width: 223mm, Height: 136mm. Weight: 760g (excluding R/C equipment) ●Wheelbase: 253mm ●Tread (Front & Rear): 186mm ●Tire Width/Diameter: 19mm/74mm (Front), 36mm/82mm (Rear) ●ABS Bathtub Type Frame ●Rear-Wheel Drive ●3-Bevel Differential ●2-Piece Steering Tie-Rod ●Suspension: Front Swing Axle, Rear Rolling Rigid ●Gear Ratio = 14.7:1 ●Type 380 Motor ●Requires an Electronic Speed Controller (sold separately) |
| Separately Required Items ●2-Channel R/C System w/ESC ●R6/AA/UM3 batteries for transmitter ●Battery Pack & Charger |
Information is current as of July 16, 2021. Specifications are subject to change without notice.
MANUAL DOWNLOAD
