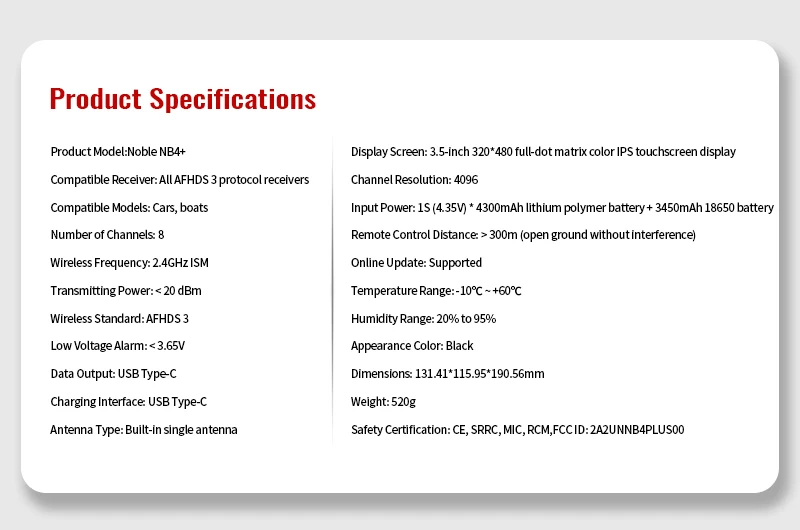

Specification:

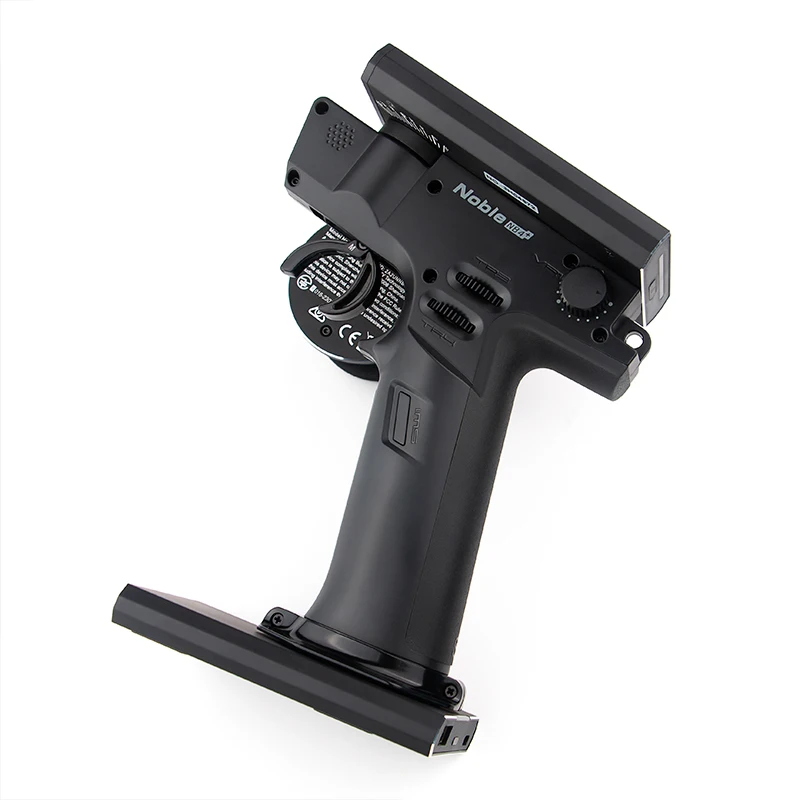

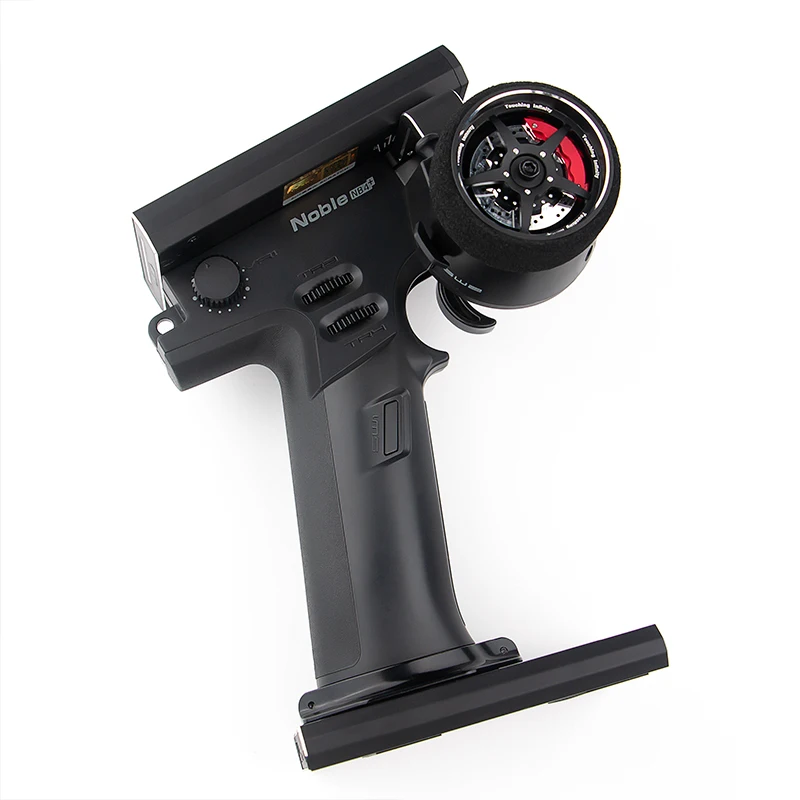

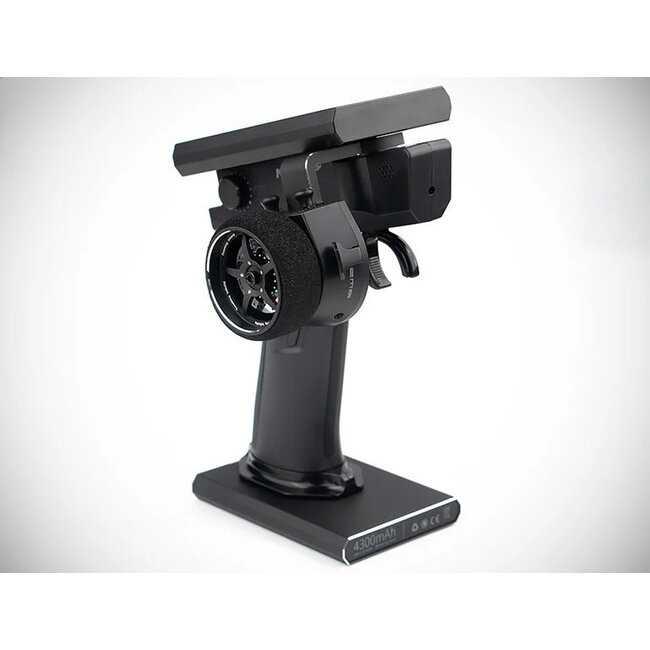

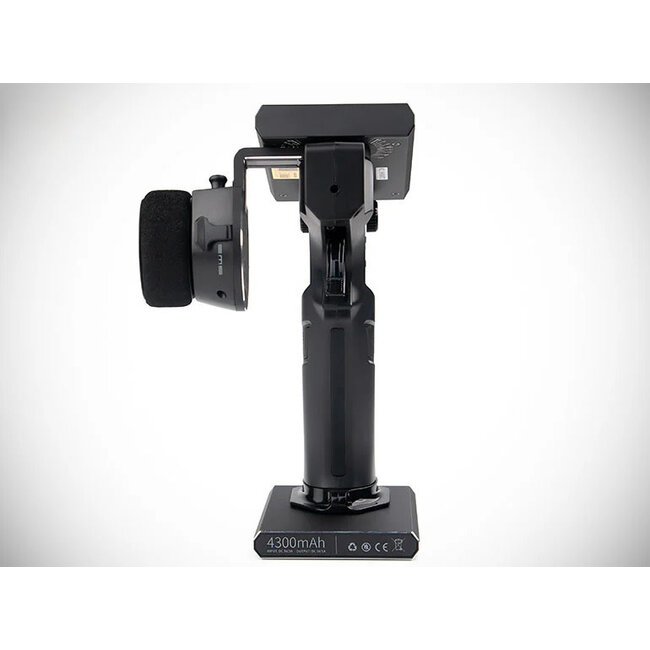

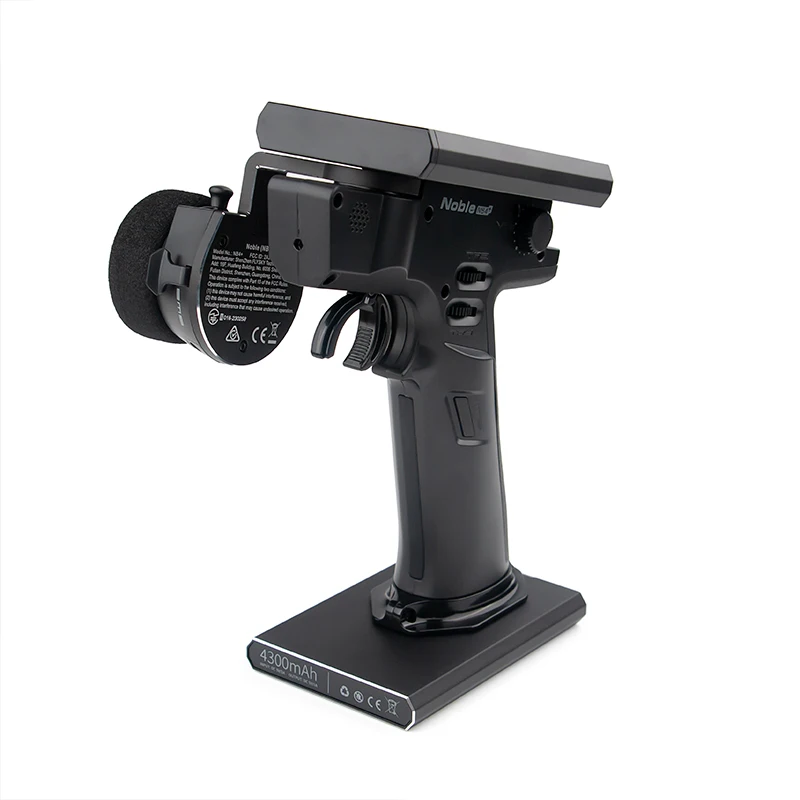

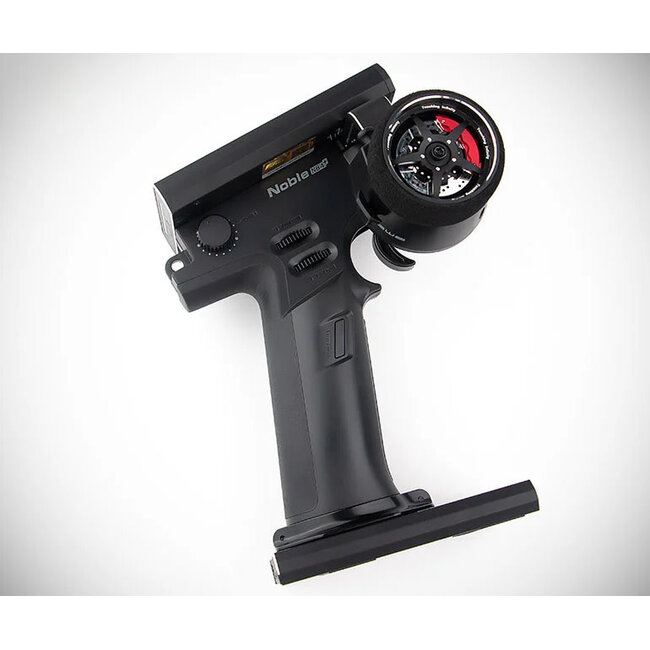

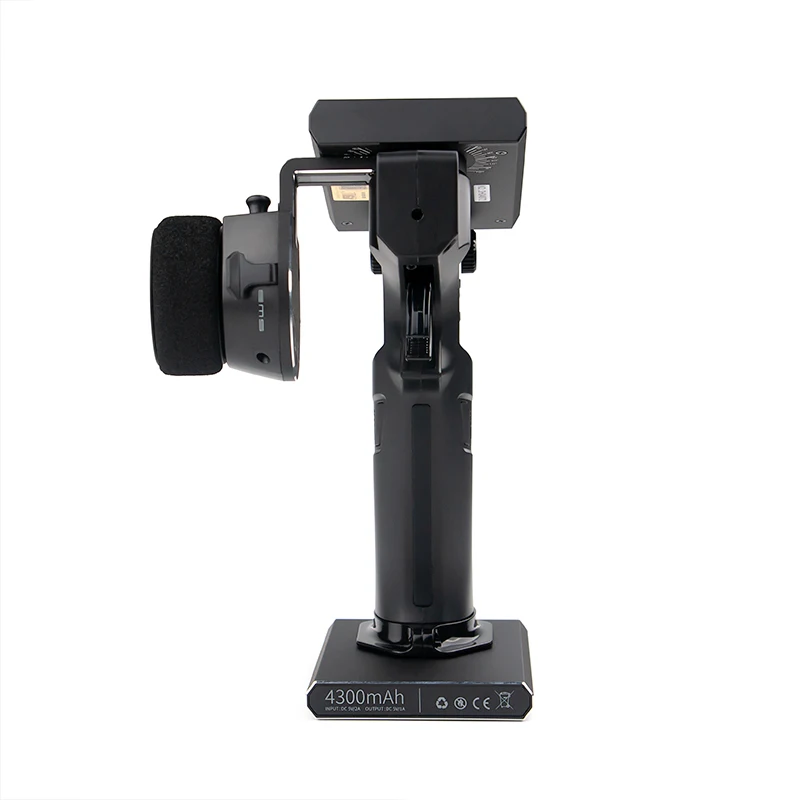

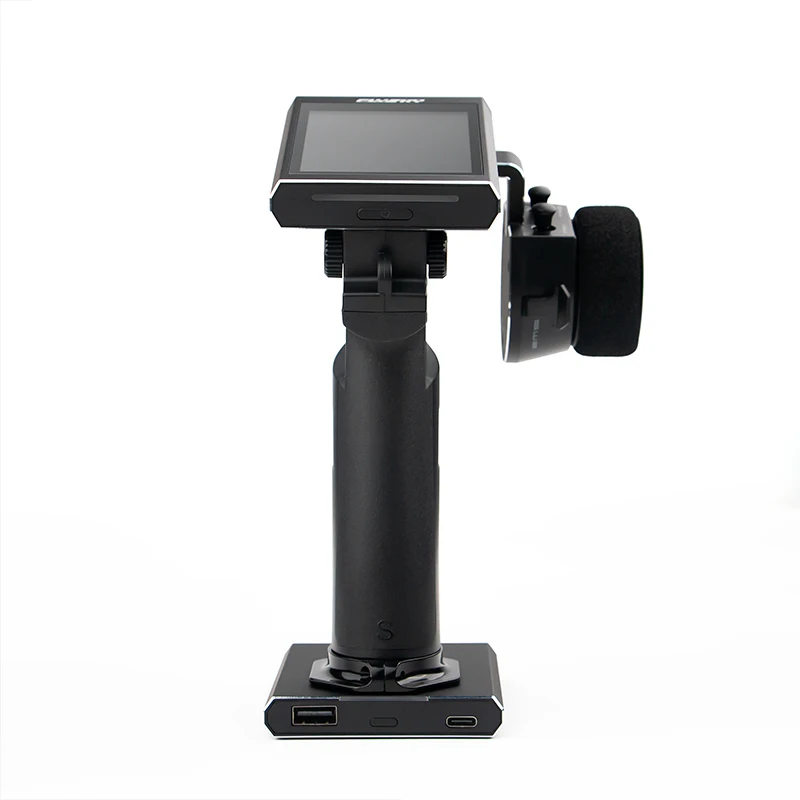

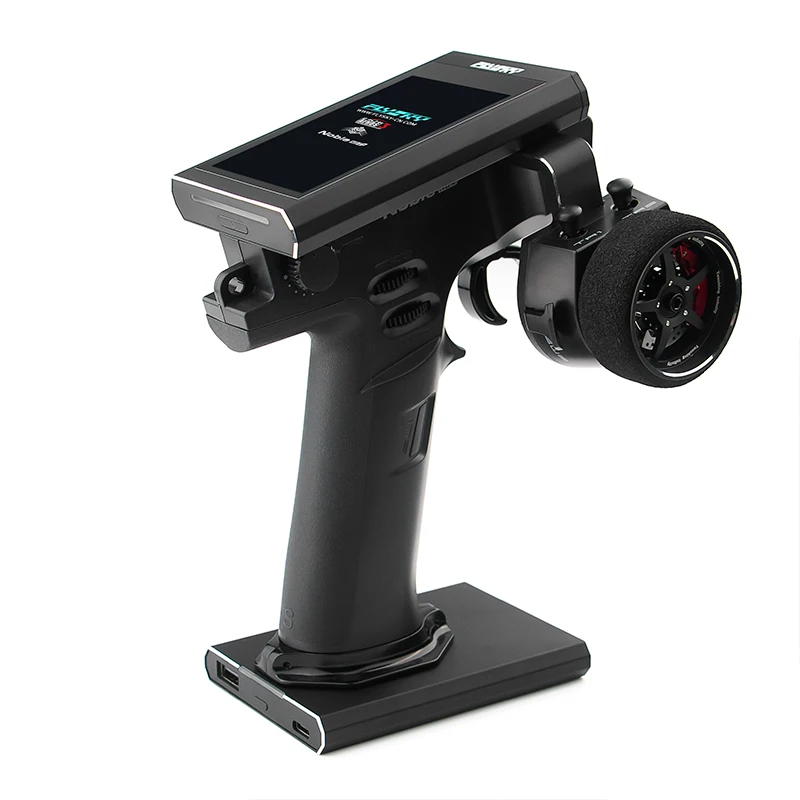

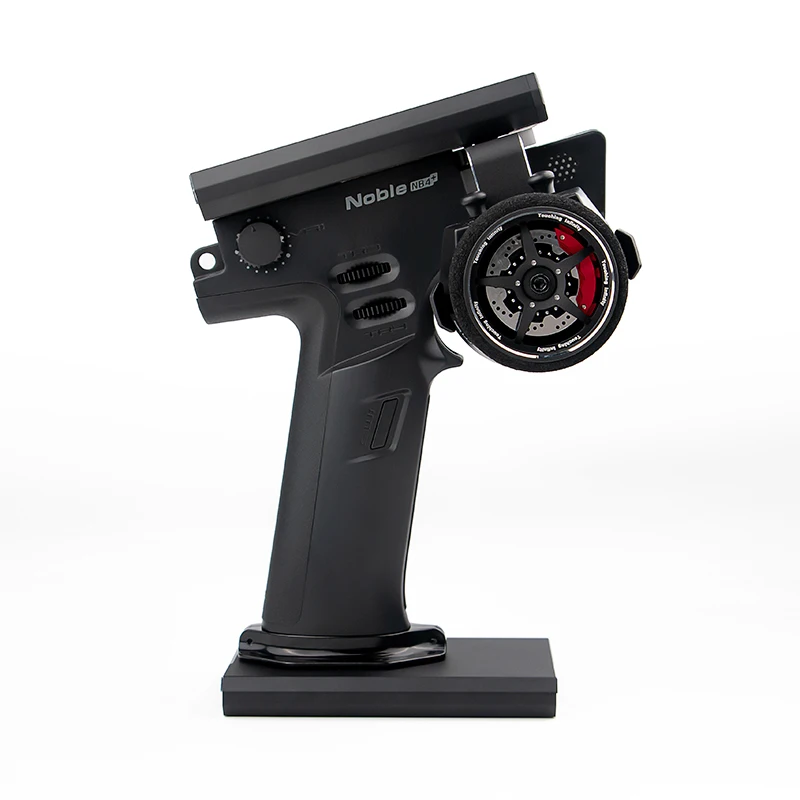

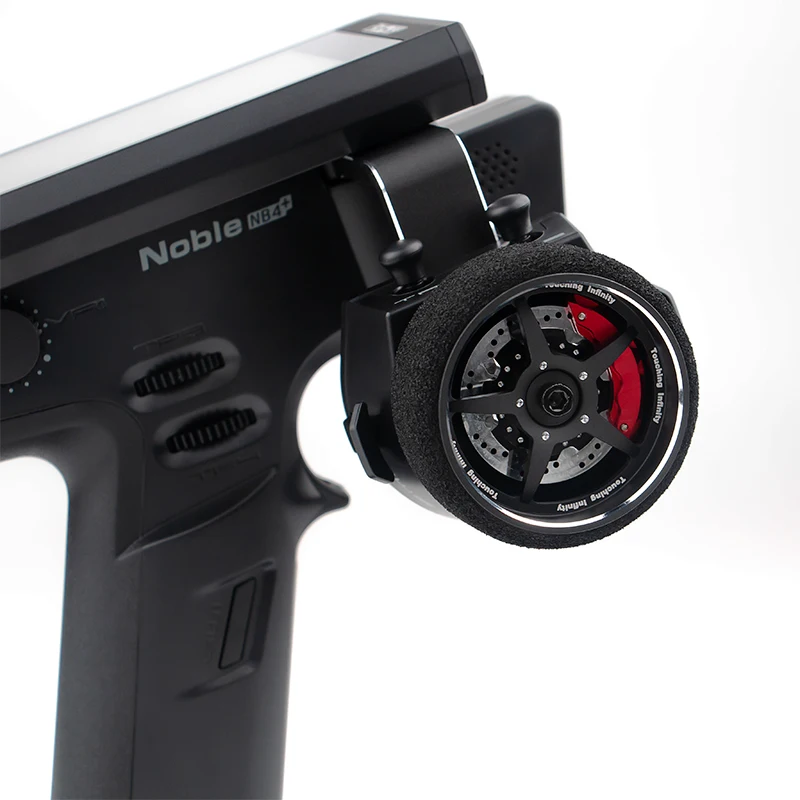

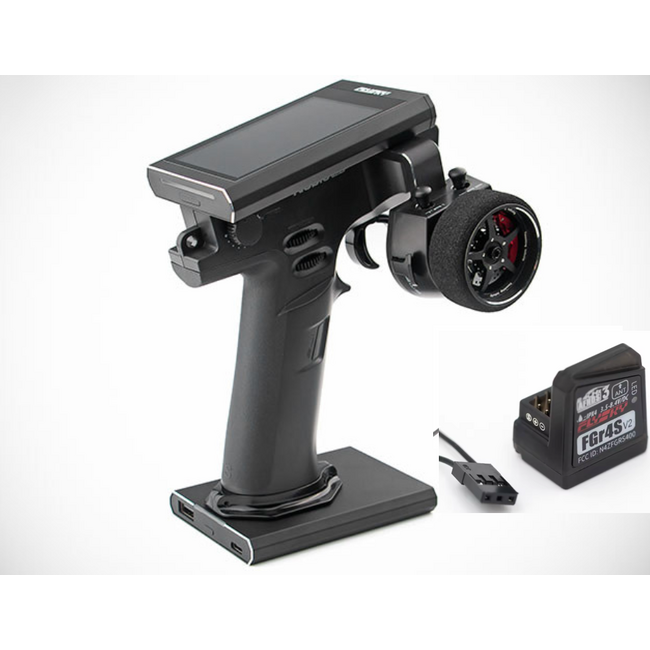

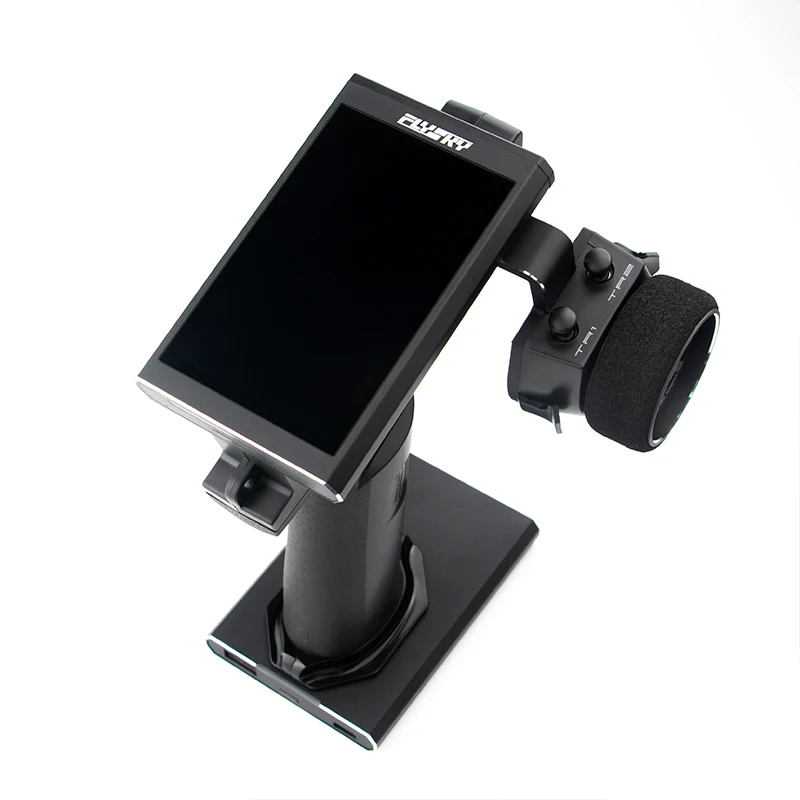

Product name: Noble NB4+ Transmitter
Product model: NB4+
Adaptive Receivers: FGR4B and other AFHDS 3 receivers
Adaptive Models: Car or Boat
Number of Channels: 8
RF: 2.4GHz ISM
Maximum Power: < 20 dBm(EU)
Low Voltage Alarm: < 3.65V

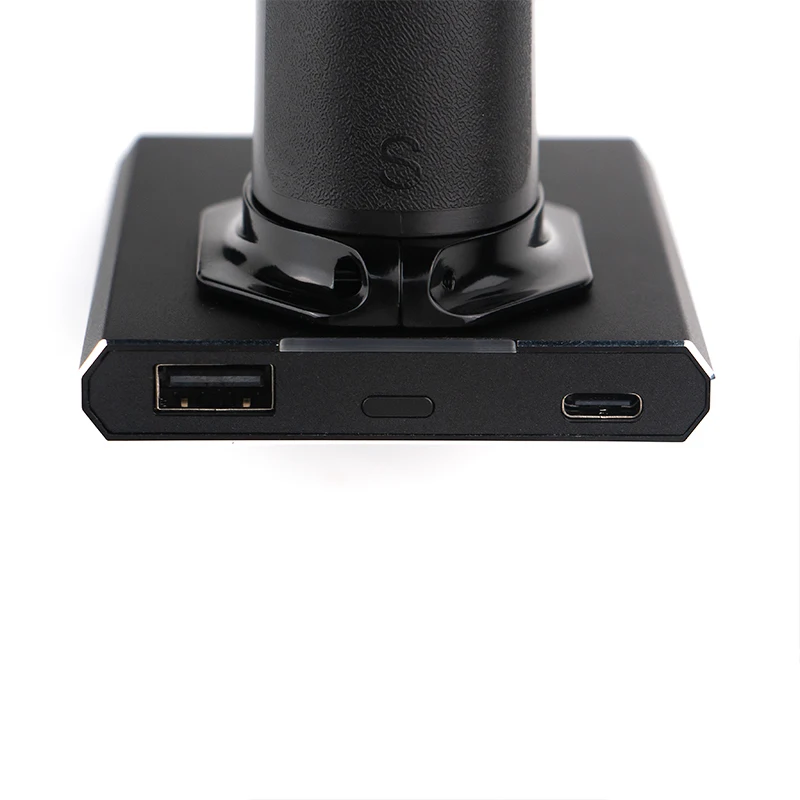

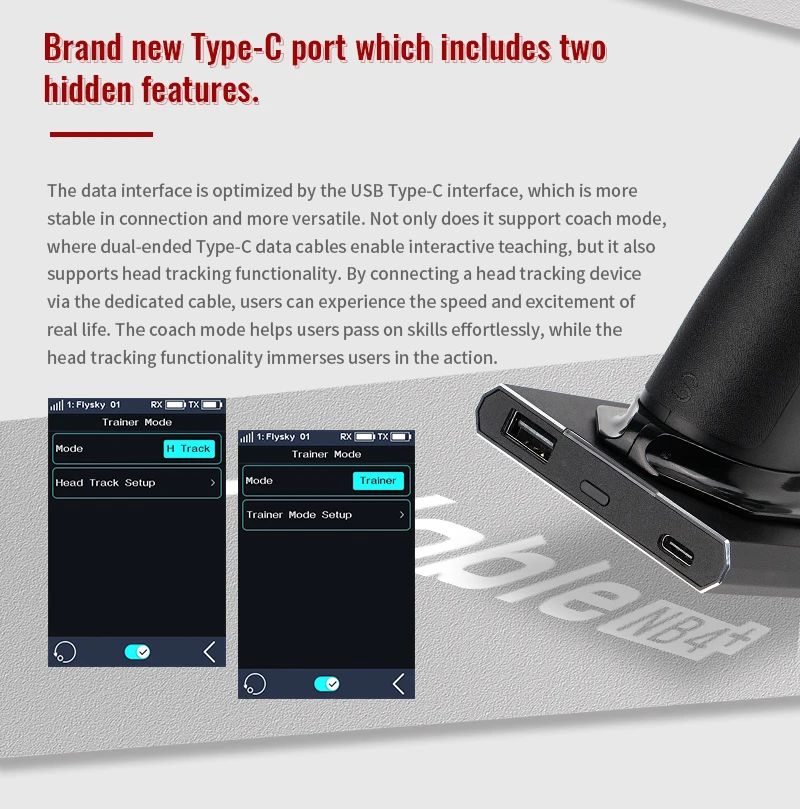

Data Output: USB Type-C
Charging Jack: USB Type-C
Antenna Type: External single antenna

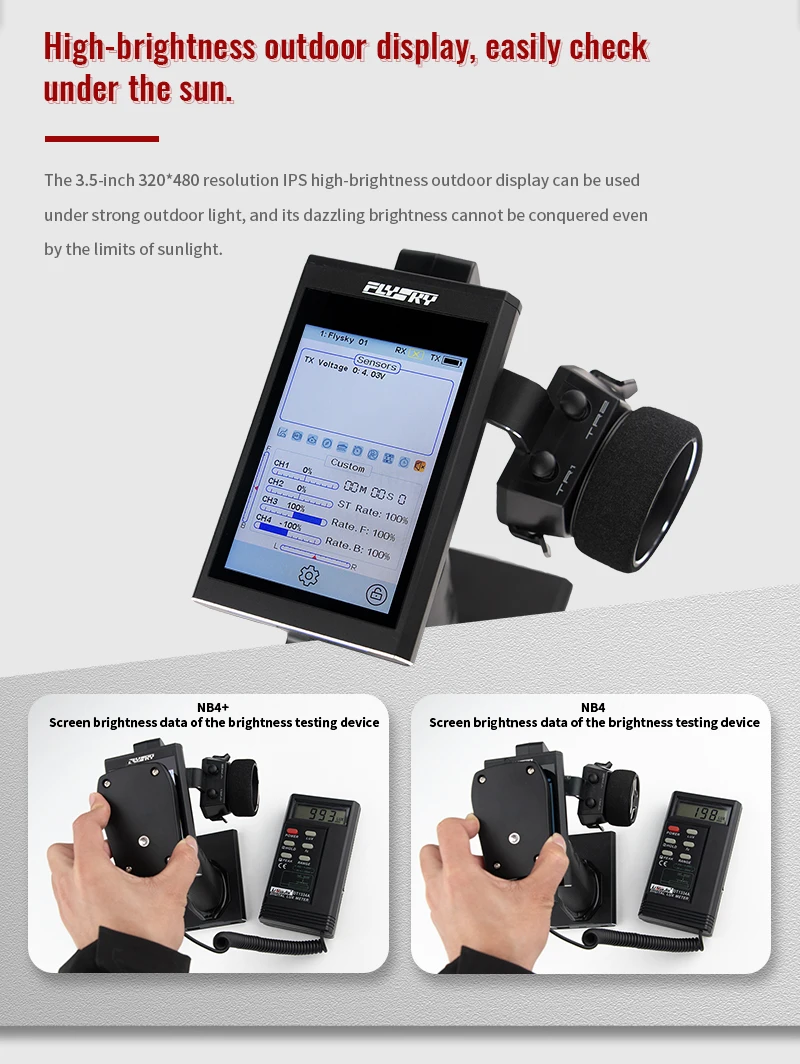

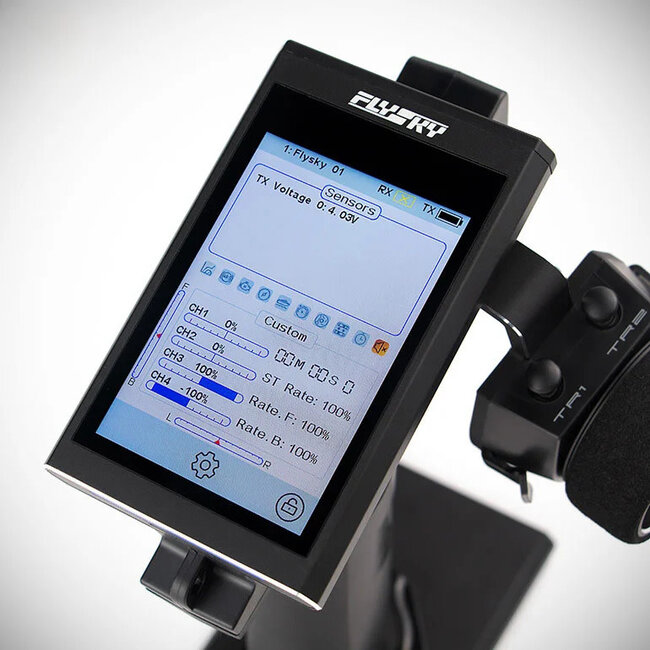

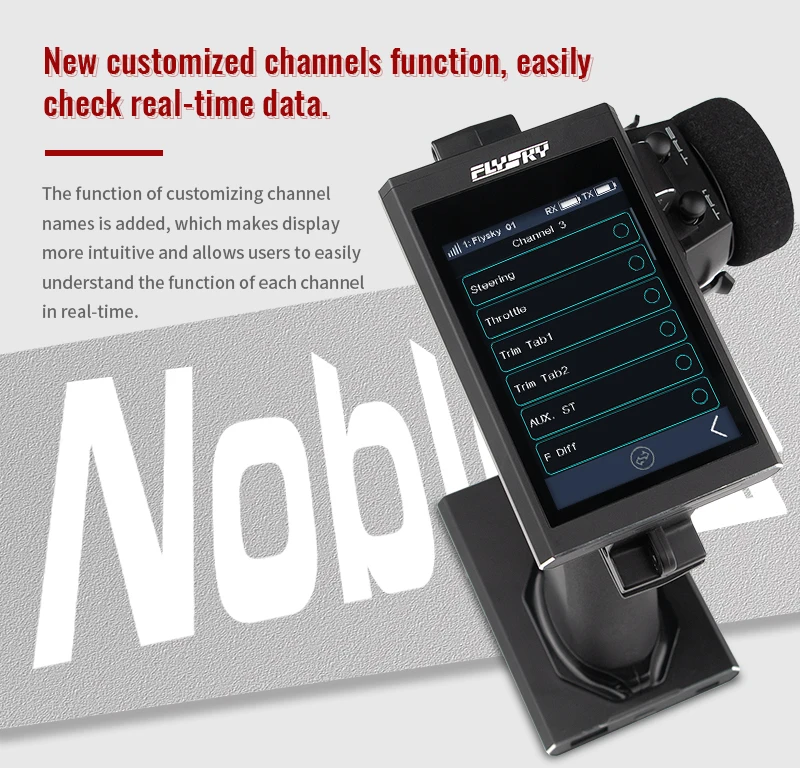

Display: 3.5-inch 320*480 full dot matrix color IPS touch screen
Resolution: 4096

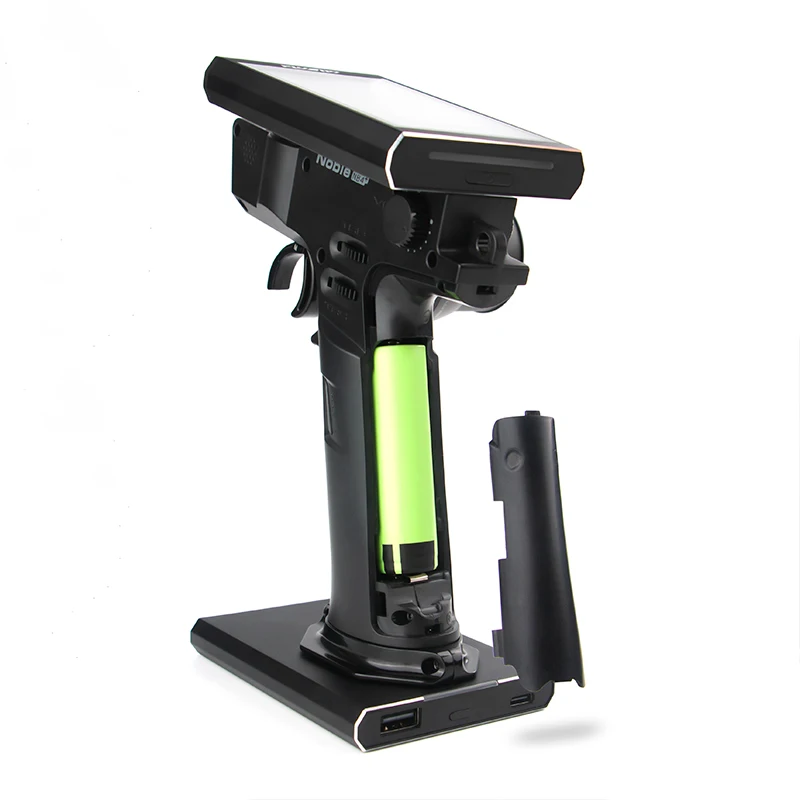

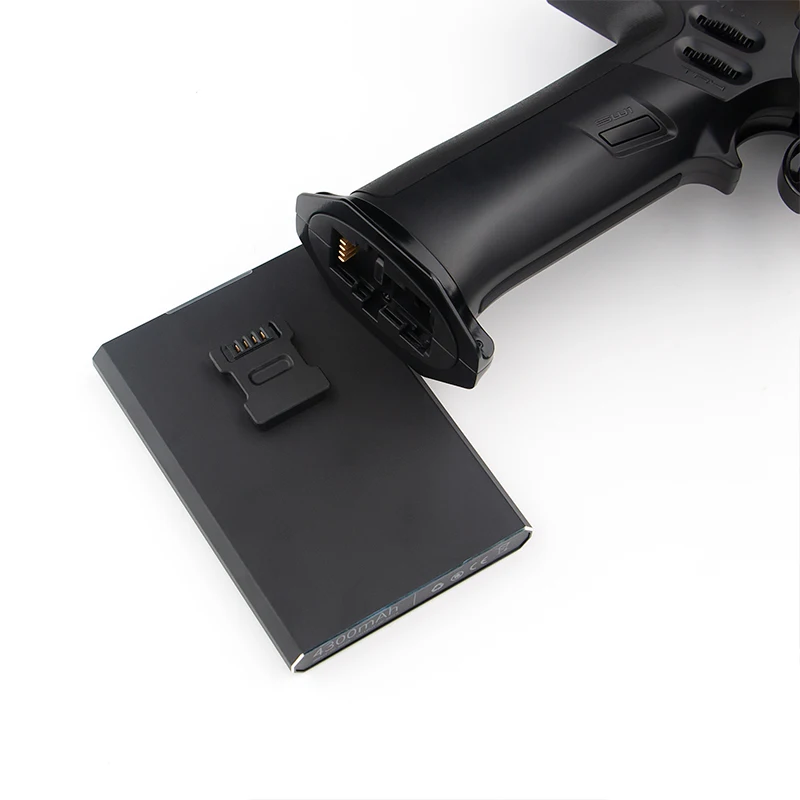

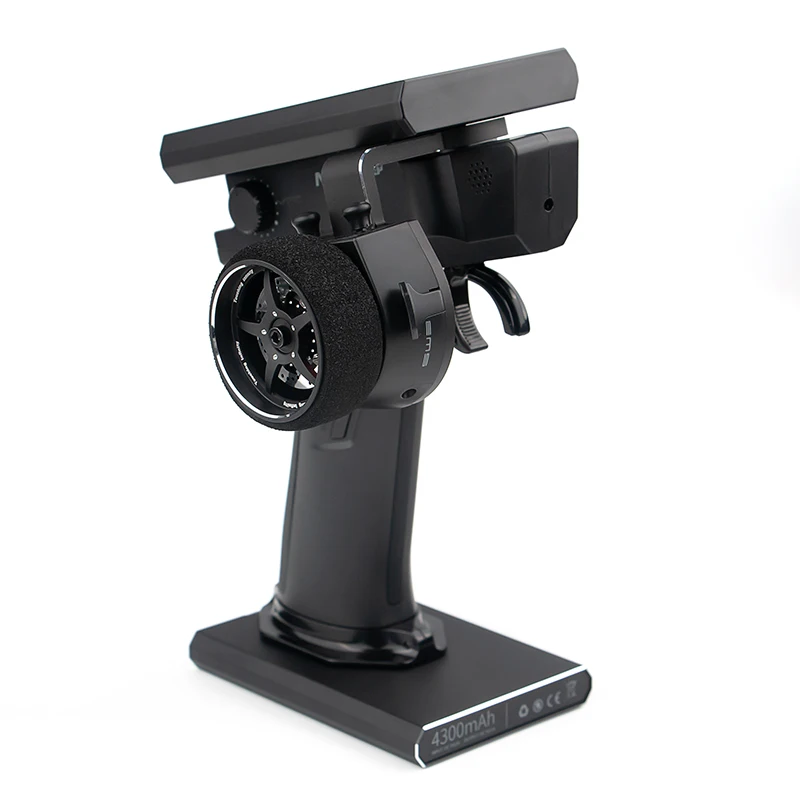

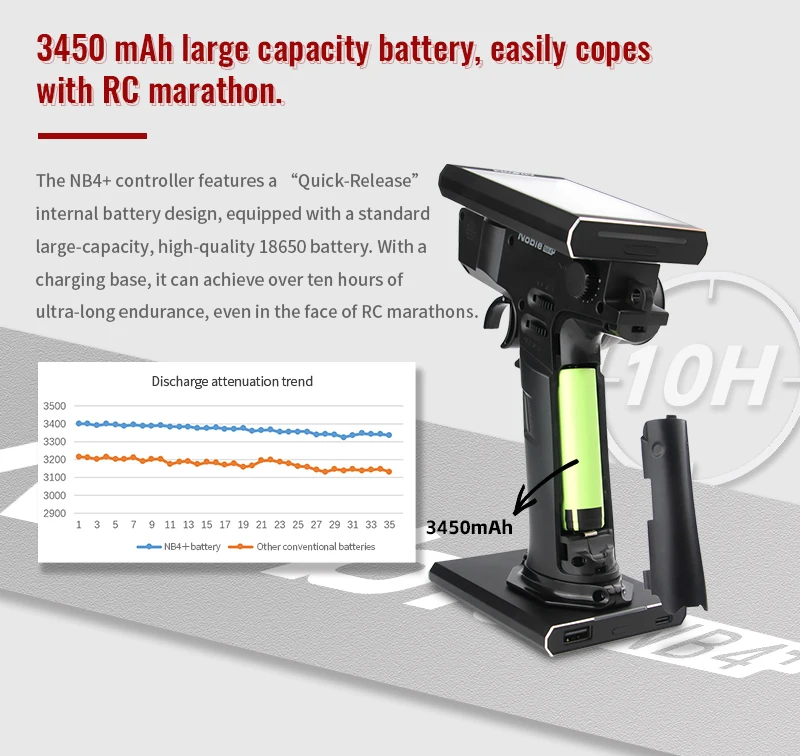

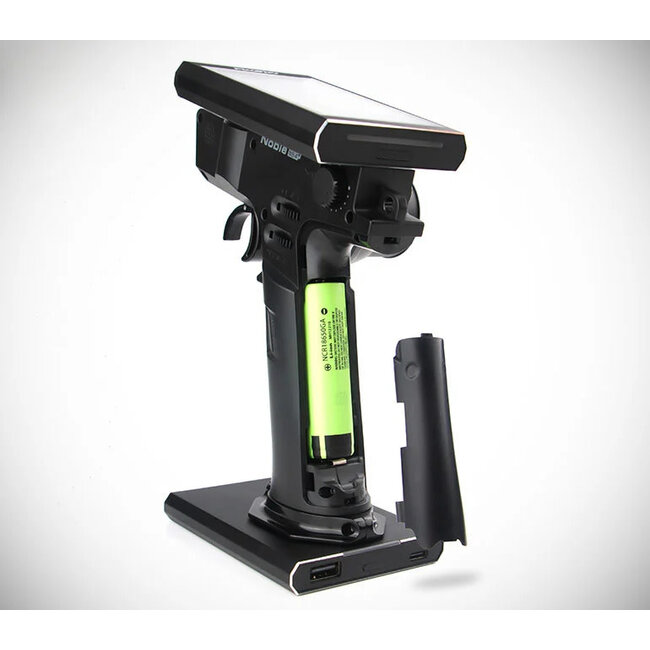

Input Power: 1S(4.2V )*4300mAh Lithium Polymer Battery+3450mA 18650 Battery
Distance: >300m (Ground distance without interference)
Online Update: Yes
Temperature Range: -10° C~+60° C
Humidity Range: 20%~95%
Color: Black
Size: 131.41*115.95*190.56mm
Weight: 520g
FGR4B
PWM channel: 4
Wireless frequency: 2.4GHz
Wireless protocol: AFHDS 3
Antenna type: Built-in single antenna
Power: 3.5-8.4V
Data port: PWM / PPM / i.bus/S.BUS
Temperature range: -10 - + 60
Humidity range: 20% -95%
Transmission Power: <20dBm(EU)
Working Current: 25mA/5V
Display: LED Indicator
Online Update: Yes
Size: 25.5*22*17.3mm
Weight: 5.1g
Package List:
1*Noble NB4+ Transmitter
1*FGR4B receiver
1*USB cable
1* Accessories kit
Package size: 27*23*18cm
Package Weight: 1182g
