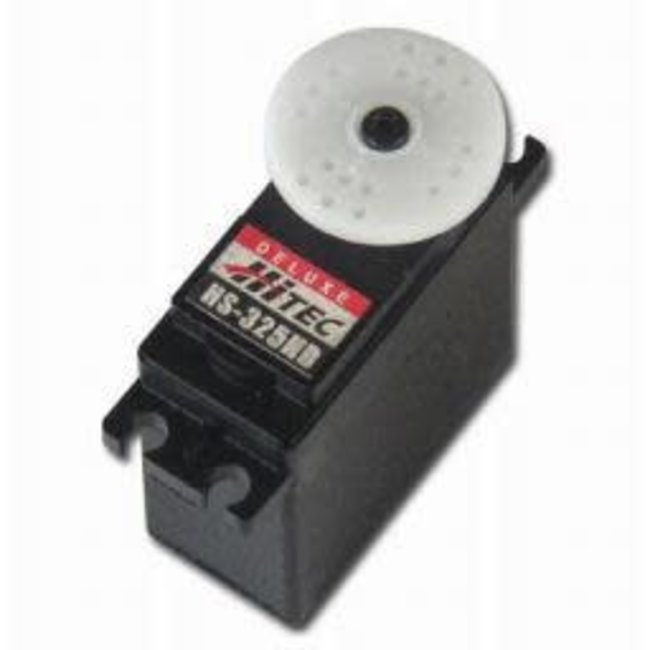

HITEC HS-325HB 2.8kg .19sec BBThe HS-325HB Standard Heavy Duty Servo features a ball bearing output shaft for long life and positive centering. Hitec’s HS-325HB is offered with Karbonite™ gears, that after hundreds of thousands of cycles won’t show any signs of wear. With 49 in./oz. of torque at 6 Volts, the 325HB is a great choice for Sport pilots all over the World!
*See Karbonite guidelines below
Detailed Specifications
Motor Type:3 Pole
Bearing Type:Top Ball Bearing
Speed:0.19 / 0.15 sec @ 60 deg.
Torque:41.66 / 51.38 oz.in (4.8v/6v)
3.0 / 3.7 kg.cm
Size:1.57" x 0.78" x 1.43"
40.00 x 20.00 x 36.50mm
Weight:1.51oz43.00g
Detailed Feature Descriptions
Applications: Heli's and Aircraft up to 72” or up to 12lbs when using just one servo per control surface.
Note: Be aware that high vibration gas (not glow) engines combined with large contol surfaces and large thows (3D models) can put undue strain on the gears. Metal geared servos are recommended for these applications even if under 12lbs.
Warning: Do not use thread lockers on Karbonite geared servo as it will cause the output shaft to fail
Specifications
Article number
HTHS 325HB
EAN Code
669962330046
SKU
HTHS 325HB
