Product information "SkyRC Digital RC Ride Height Gauge"

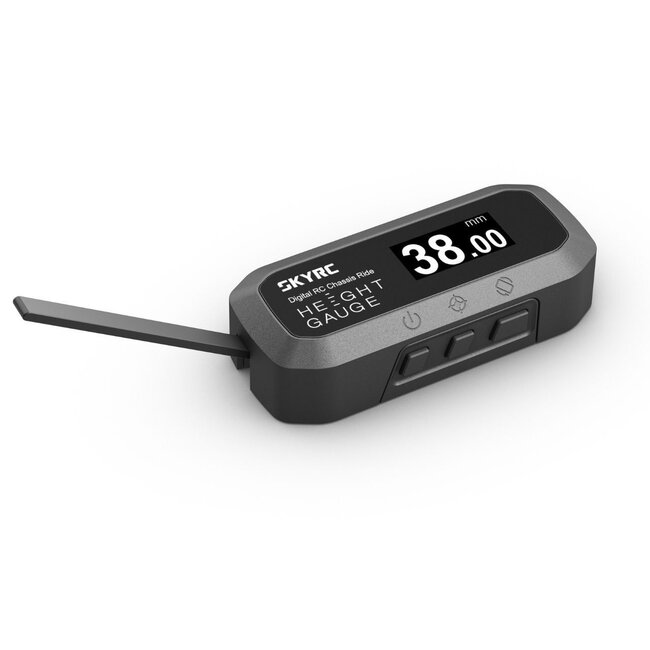

The SkyRC Digital RC Ride Height Gauge is a precise, digital measuring tool for determining the ride height of RC models. Powered by an integrated MCU and a proprietary measurement algorithm, the device delivers a resolution of 0.1 mm across a measuring range of 2–38 mm. The slim, flat 2 mm measuring blade reaches tight and hard-to-access areas where conventional round measuring rods reach their limits. An integrated multi-point calibration with the included calibration block (at 2 mm, 10 mm and 20 mm) ensures reliable and repeatable measurement results. The display can be rotated 180° at the press of a button, keeping the readout clearly visible from any angle. Compatible with 1/24, 1/14, 1/12, 1/10 and 1/8 RC models. A dedicated storage case reliably protects the measuring instrument and calibration accessories.
Specifications:
| Measuring Range: | 2–38 mm |
| Resolution: | 0.1 mm |
| Power Supply: | 1x AAA battery |
| Operating Temperature: | -5°C to 60°C |
| Compatibility: | 1/24, 1/14, 1/12, 1/10, 1/8 RC models |
| Dimensions: | 127.3 x 33 x 18mm |
| Weight: | 40g |
Package Contents:
1x Digital RC Ride Height Gauge
1x Calibration block
1x Storage case
1x Manual
