lectric R/C Car Series no.466

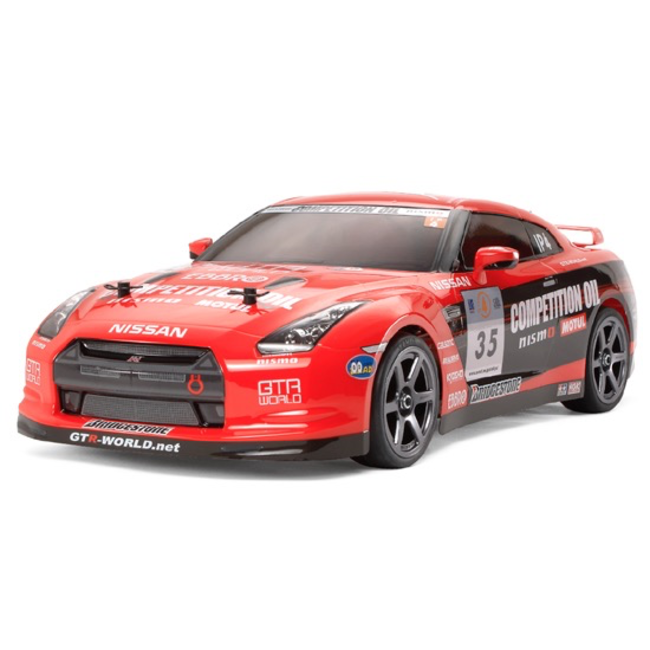

1/10 R/C Motul NISMO GT-R Tokachi 24Hours Race (TA05 ver.II)
Item No: 58466
Length: 444mm. Image shows finished model.
| Tuned For 24Hours Race This is a 1/10 scale R/C model of the MOTUL NISMO GT-R which raced at Tokachi, the only 24 hour endurance race held in Japan. The lightweight polycarbonate body realistically reproduces the GT-R’s distinctive form. In addition, separately molded parts for the unique rear wing, side mirrors, and light cases are included to enhance realism. Markings to depict sponsor logos are also included to allow to finish the body at ease. |
| The Evolved Race-Spec Chassis, TA05 ver.II The chassis width has been reduced for greater roll movement range during cornering. Thanks to the one-piece aluminum motor mount with cantilever center shaft, the position of the battery pack has been shifted forward, resulting in optimum balance and enhanced handling. The drivetrain features front and rear 37T ball differentials and an 18T center pulley. The four wheel double wishbone suspension features an inboard front suspension layout with short reversible suspension arms and uprights which have 1050 ball bearings. In addition, the separate suspension mounts help to achieve easier maintenance and setting changes. |
 |
 |
 |
|

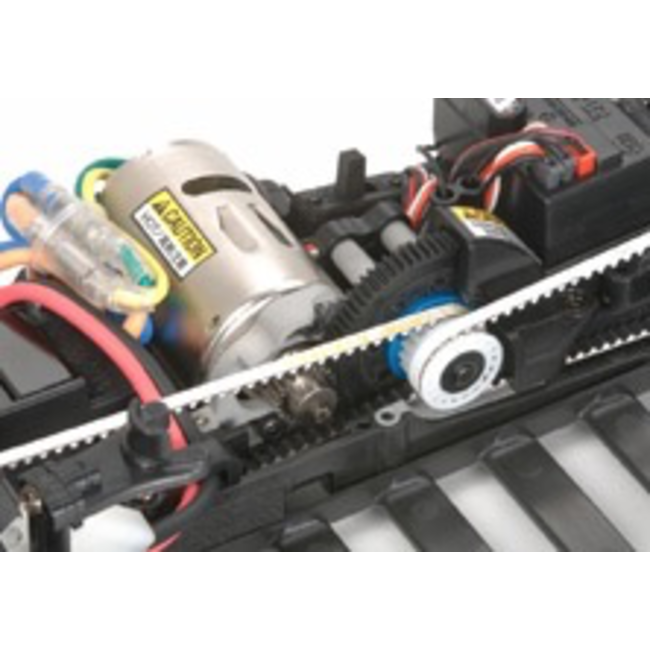

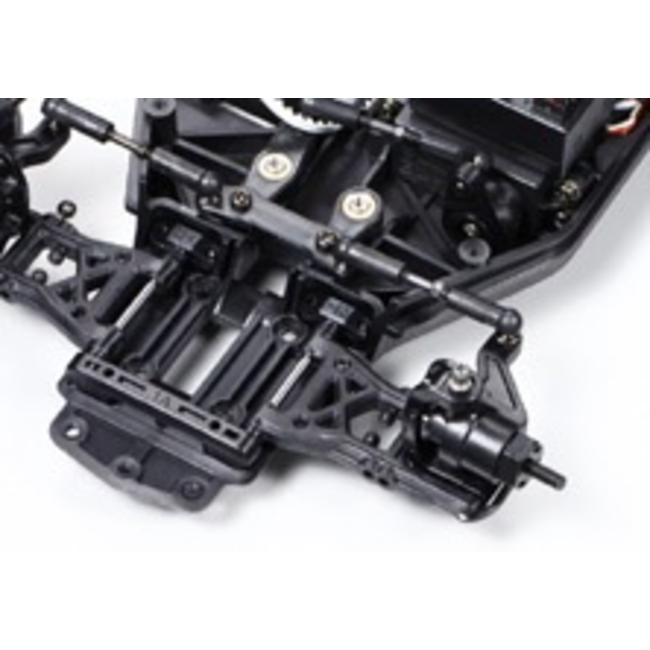

■Maintenance is made easier thanks to the left and right separate suspension mounts (front and rear). ■Newly designed one-piece aluminum motor mount with cantilever center shaft led to the narrower chassis design. |
| Specifications ●Length: 444mm, Width: 187mm, Height: 132mm ●Wheelbase: 257mm ●Tread (Front & Rear): 165mm ●RS540 Type Motor ●Horizontally-Placed Motor Equal Length 2-Belt Driven 4WD ●Front & Rear Ball Differentials ●3-Piece Steering Tie-Rod ●Front & Rear Double Wishbone Suspension ●Front & Rear CVA Shock Units Super Mini ●Gear Ratio=7.19:1 ●Tire Width/Diameter (Front & Rear): 24mm/64mm ●Requires an Electronic Speed Controller |
MANUAL DOWNLOAD
