Electric R/C Car Series no.635
1/10 R/C Mercedes-Benz G 320 Cabrio (Silver Painted Body) (MF-01X)
Item No: 58635

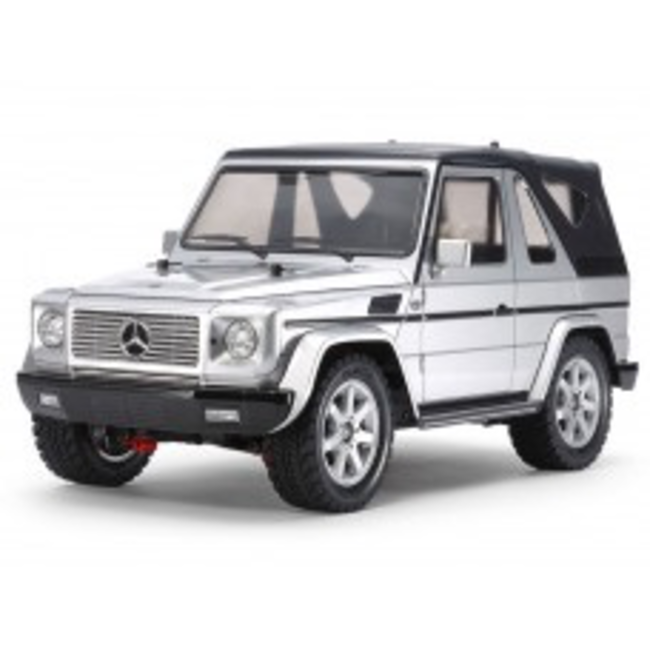

Length: 385mm. Image shows assembled kit.
| Skip the Painting, Enjoy the Assembly! The Mercedes-Benz G-Class' outstanding durability and off-road performance have made it a firm favorite with consumers since its inception in 1979, its polished technology taken over and modernized with each generation to make it a top class SUV. This is an R/C model assembly kit of the G 320, a 2-door cabriolet produced between 1997 and 2001, and much sought-after thanks to its stylish looks and typically uncompromising G-Class performance. The body is reproduced in tough, lightweight polycarbonate, which is pre-painted in silver and features the soft top pre-painted in flat black. The kit features separately molded side mirrors and metal plated grille-parts. The exciting shaft-driven 4WD MF-01X chassis requires assembly, and is paired with 7-spoke wheels and semi-pneumatic treaded tires for super performance whether on- or off-road. |
 ★The artfully molded polycarbonate body comes pre-painted in silver with realistic black painted soft top and stickers to recreate stitching details. |
 |
 ★The monocoque frame MF-01X chassis uses a rear-mounted motor, with power provided by gear to the rear diff and propeller shaft to the front. |
|
 ★Fit separately sold Item 54614 M-05 Ver.II Carbon Reinforced L Parts (Suspension Arms) to allow adjustment of all-important rebound stroke. |
| MF-01X - Compact 4WD At Home on a Range of Surfaces Based around a tough monocoque frame with integrated gearboxes, this compact 4WD chassis gives a thrilling drive whether you take it on road or flat dirt surfaces. It features a rear-mounted motor, with gear-driven rear wheels and a propeller shaft taking power to the front. Both front and rear gearboxes have differential gears. The battery pack location in the chassis center secures excellent balance, while 4-wheel independent double wishbone suspension employs friction dampers. Off-road capable M-05Ra chassis uprights and hub carriers are also included. |
| Specifications ★Length: 385mm, Width: 177mm, Height: 180mm ★Wheelbase: 239mm (L) ★Tire Width/Diameter (Front & Rear): 30/77mm ★Tread (Front & Rear): 145mm ★Monocoque Frame ★Shaft-Driven 4WD ★3-Bevel Differential Gears ★2-Piece Steering Tie-Rod ★4-Wheel Double Wishbone Suspension ★Front & Rear Friction Dampers ★Gear Ratio = 9.5:1 ★Type 540 Motor ★Electronic Speed Controller (sold separately) |
| Separately Required Items ●2-Channel R/C Unit with ESC ●Battery Pack & Charger ●R6/AA/UM3 batteries for transmitter |
MANUAL DOWNLOAD
