Star Unit Series no.12
1/24 R/C MudMad (SW-01)
Item No: 57412

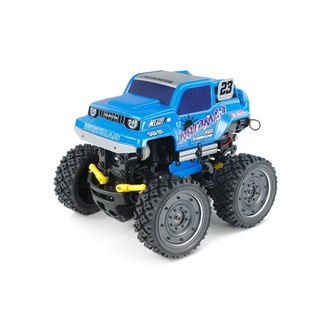

Length: 190mm. Image shows painted and assembled kit.
Body is pre-painted, with pre-cut wheel arches and holes for body mounts, etc. made.
| Mad for It! This assembly kit creates the compact yet highly characterful MudMad, an R/C model with a body inspired by full-size cross country vehicles, that is the brainchild of world-renowned design heavyweight Yamazaki Takayuki. It is molded in lightweight polycarbonate, and to ease the burden on its owner is pre-painted in light blue with wheel arches pre-cut and body mount holes made. The model is based upon the gear-driven 4WD SW-01 chassis, which employs gear differentials front and rear and offers superlatively tight turns. Slam on the throttle to perform wheelies, or the brakes for exciting jackknife moves; this big tire model is your passport to some serious fun! |
Â
| SW-01: Super-Compact 4WD 190mm long and 160mm wide, the SW-01 is a compact, highly fun 4WD chassis. A Type 370 motor is central in the slim monocoque frame, with gears transmitting its output to the front and rear of the model, where 69mm tires translate it into a powerful drive. The chassis power source is mounted in the top section to allow wild wheelies under acceleration. Strut type 4-wheel independent coil sprung suspension utilizes single piece upper arms to link left and right wheel steering motion, helping suppress roll during turns, and together with front and rear differentials realize a tight turning circle. |
Â
 ★The Yamazaki-designed body oozes character and is a perfect match for the compact SW-01 chassis. |
 |
 ★To save time, the body comes pre-painted in light blue with wheel arch and body catch sections pre-cut. |
|
 ★The central Type 370 motor transmits power to front and rear via gears in a 4WD setup. |
Â
 ★A moving upper arm links left and right suspension, cushioned by MacPherson struts. |
|
 ★A close-up of the steering. The one-piece front upper arm is attached to the steering linkage for lean. |
|
 ★This image shows the rear suspension, which employs the same strut setup as is used on the front. |
Â
 ★The wheelie bar assists wheels in the air action, while exhaust depictions add a layer of realism. |
|
 ★Give it plenty of throttle and the MudMad will delight you with thrilling wheelies! |
|
 ★Attach the separately sold Item 54898 SW-01 Upper Arm Connectors to enjoy crazy steered wheelies! |
Â
 |
|
 |
|
★Left: Black dish wheels are an understated accent that melds perfectly with the overall design. ★Right: The model's power source is mounted on the top of the chassis, assisting with super exciting wheelies! |
Â
 |
|
|
★Left: Magnetized body catches make attachment and removal a breeze. They can be reinforced with snap pins. ★Right: See the little MudMad in action, with plenty of wheelies and crazy acrobatics on display! |
Â
| Specifications ★Length: 190mm, Width: 160mm, Height: 145mm ★Wheelbase: 92mm　★Tread: 130mm (Front/Rear) ★Tire Width/Diameter: 27/69mm (Front/Rear) ★Monocoque Frame ★Gear-Driven 4WD ★Planetary Gear Differentials ★3-Piece Steering Tie-Rod ★Suspension: MacPherson Strut ★Gear Ratio = 21.88:1 ★Type 370 Motor ★Electronic Speed Controller (ESC) is sold separately. |
Â
| Separately Required Items ★2-Channel R/C System w/ESC ★R6/AA/UM3 batteries for transmitter ★Power source |
Information is current as of June 24, 2020. Specifications are subject to change without notice.
