ElectricR/C Car Series no.384
1/10 R/C Subaru Brat
Item No: 58384

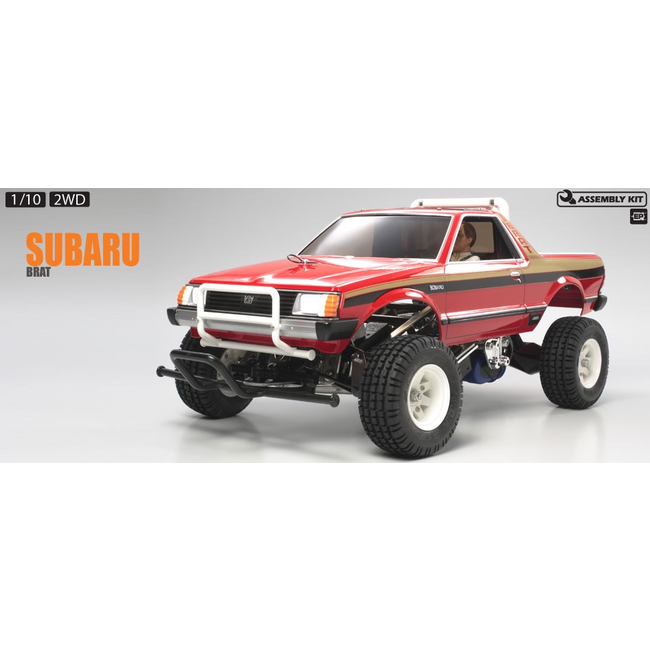

Length: 453mm. Image shows assembled and painted kit.

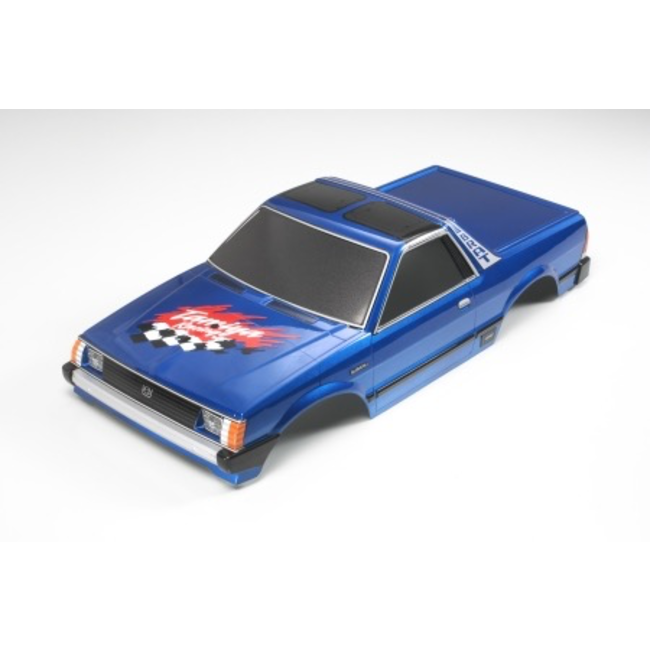

| Relive the '70s with this Classic Pick-Up The Subaru Brat was made solely for export, and achieved tremendous popularity in the U.S. market in the 1970s. Tamiya first produced an R/C version of this popular little truck back in 1983, and is now proud to present an updated, improved re-release of this classic R/C truck. Aside from the upgraded internal parts, this assembly kit comes with a driver figure for a nostalgic feel. In addition, both a super-detailed resin body for shelf display and a lightweight durable polycarbonate body for racing are included. |

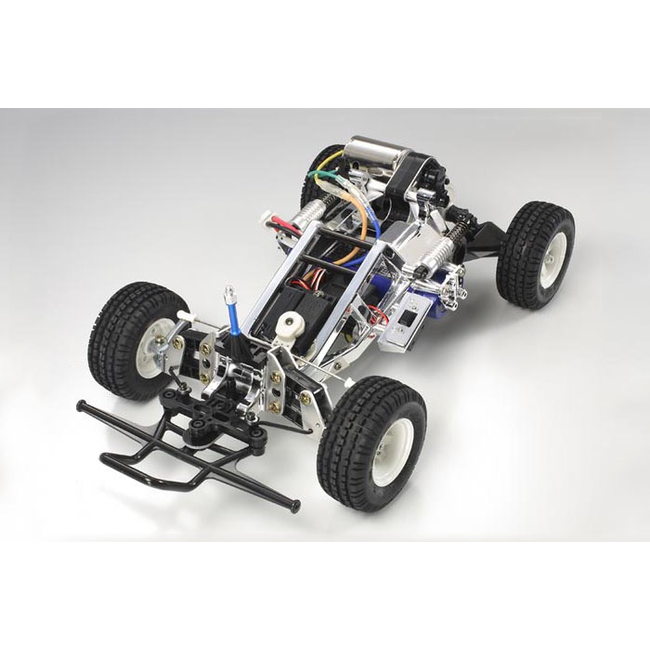

 2WD Chassis Packed with Unique FeaturesThe unique space frame chassis features 4-wheel independent suspension system with front double wishbones and rear trailing arms. The rear suspension in particular has been updated with the diaphragm type oil dampers and coil springs. A Type 540 motor drives the differential-equipped gearbox, and the drive shaft features a dog bone joint for optimum transmission efficiency. Block pattern tires mounted on the realistic 8-spoke wheels rounds out this stylish package. |
| Specifications ●Length: 453mm, Width: 220mm, Height: 175mm, Weight: 1,840g (with Resin Body) ●Tread: 197mm (Front), 178mm (Rear) ●Drivetrain: Rear Wheel Drive ●Suspension: Front double wishbone with in-board spring, Rear trailing arm with oil damper ●Tire Width/Diameter: 35/82mm (Front/Rear) ●Frame: Space Frame ●Motor: RS540 Type ●Gear Ratio: 6.7:1, 7.3:1, 8.5:1 ●Speed Controller: ESC |
MANUAL DOWNLOAD
