Electric R/C Car Series No.643
1/10 R/C The Grasshopper II (2017)
Item No: 58643

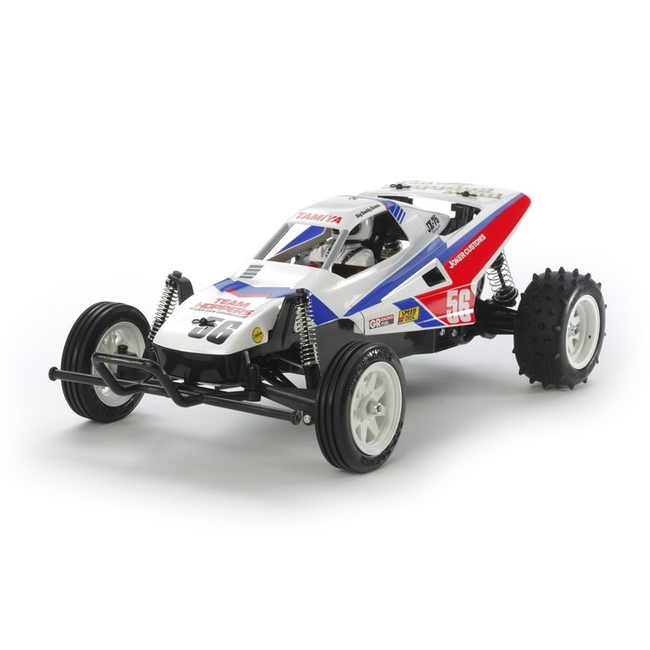

Length: 400mm. Image shows assembled and painted kit.
| Hop II It! This re-release version of The Grasshopper II R/C off-road car assembly kit features a number of updates while keeping largely to the design of the original released in 1988. It includes a highly realistic injection molded polystyrene resin body, marking stickers and a driver figure. The chassis' streamlined construction and use of a Type 380 motor makes the kit perfect for less experienced users. It is compatible with separately sold race spec Hop-Up Option parts such as Type 540 motors and CVA oil dampers. |
| A Durable Off-Road Chassis A rugged ABS resin chassis is more than up to the stresses of off-road driving, and features lightweight durable plastic suspension arms, gearboxes and so on - the result is a lightweight and durable unit. Front swing axle and rear rolling rigid suspension combine for a responsive drive, while a fully enclosed gearbox is integrated with the rear axle and has a built-in differential gear to aid smooth cornering. One-piece wheels are paired with front grooved and rear spike tires for solid performance. |
 ★At the front, the model is equipped with a swing arm setup and tough resin front bumper to help resist impacts. |
 |
 ★Integrated with the rear axle, the fully enclosed gearbox has a built-in differential gear for smooth corners. |
|
 ★A streamlined construction process means that you'll be ready to hit the road with this chassis in no time! |
| Specifications ●Length: 400mm, Width: 223mm, Height: 136mm. Weight: 760g (excluding R/C equipment) ●Wheelbase: 253mm ●Tread (Front & Rear): 186mm ●Tire Width/Diameter: 19mm/74mm (Front), 36mm/82mm (Rear) ●ABS Bathtub Type Frame ●Rear-Wheel Drive ●3-Bevel Differential ●2-Piece Steering Tie-Rod ●Suspension: Front Swing Axle, Rear Rolling Rigid ●Gear Ratio = 14.7:1 ●Type 380 Motor ●Requires an Electronic Speed Controller (sold separately) |
| Separately Required Items ●2-Channel R/C System w/ESC ●R6/AA/UM3 batteries for transmitter ●Battery Pack & Charger |
Information is current as of June 15, 2017. Specifications are subject to change without notice.
MANUAL DOWNLOAD
