Electric R/C Car Series no.415
1/10 R/C Toyota Tundra High-Lift
Item No: 58415

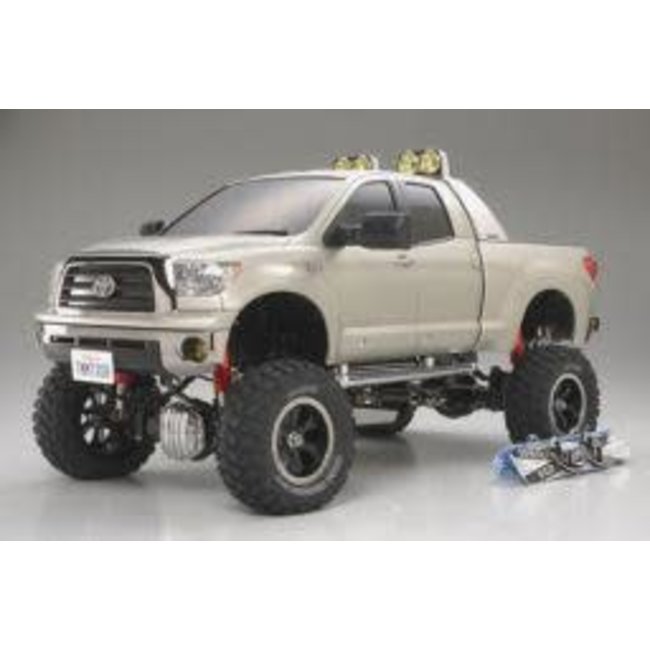

Length: 500mm. Image shows assembled and painted kit.
| Customizable Scale Realism The Tundra is a full-size pick-up truck made by Toyota for the North American market. In 2007, the Tundra underwent a model change, and this is a 1/10 R/C assembly kit of the double cab version of this second generation Tundra. The model features a ladder frame chassis just like the actual truck, and is also equipped with a 3-speed transmission and shaft-driven 4WD system. Many metal parts such as the ladder frame, leaf springs, and friction dampers provide a unique assembly experience while the injection-molded body shell and large diameter tires accurately reproduce the high-lift's imposing appearance. Futhermore, parts such as a roll bar, grille guard, and roof carrier with 2 snowboards are included to let you customize your ride. Add separately available LED lights for an even higher level of realism. |

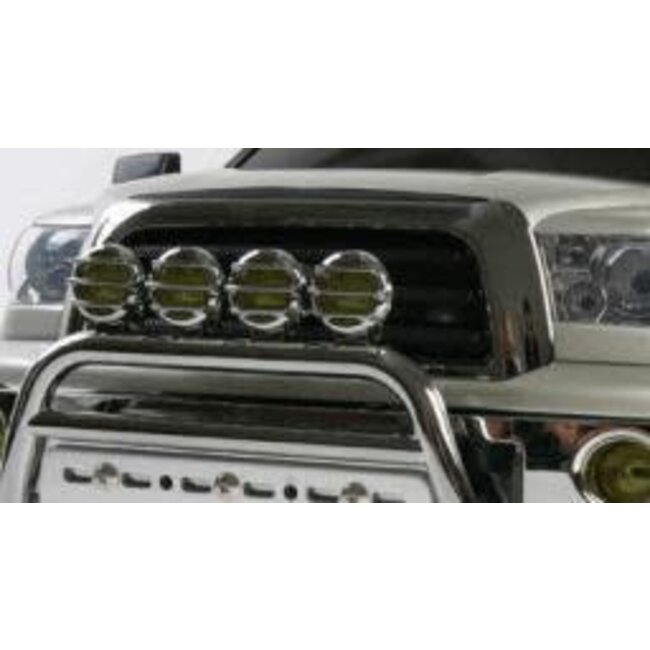

 Grille guard with fog lights and aluminum skid plate give the model a heavy-duty look. |
 |
 Separately available LEDs can be installed in the metal-plated roll bar light positions. |
|
 Side mirrors are made from a soft and durable resin material. Two-piece mirror surfaces are just like the actual truck. |
 6-spoke beadlock wheels are of a massive 94mm diameter. |
|
 Both front and rear differential covers are metal-plated for an additional aesthetic touch. |
|

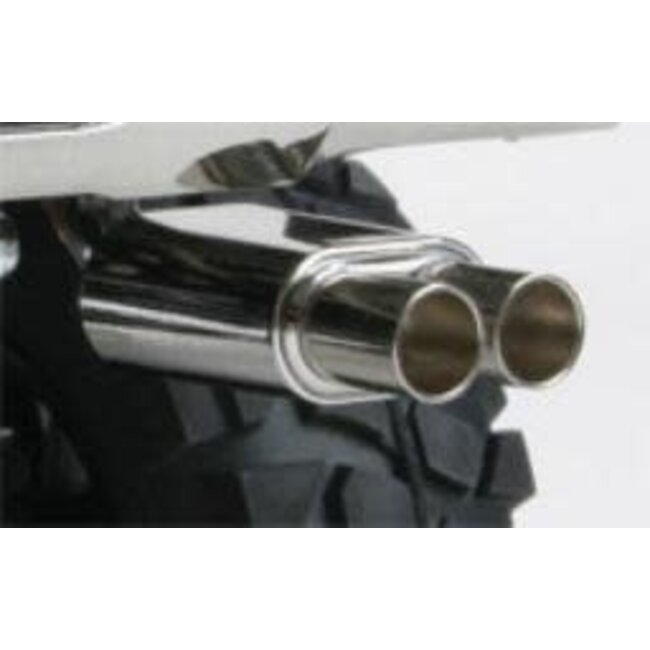

 Metal exhaust tips protrude from beneath the rear bumper. Separately available LEDs for turn signals, reverse lights, and brake lights can be installed. |
| Customize Your Truck |
 Various detailing parts as well as original stickers are included to dress up your machine. |
|
 In addition to the standard type grille, a billet type grille is also included to give the truck a purposeful look. |
|
 Roof marker lights enhances the character of the truck and can also be fitted with separately available LEDs. |

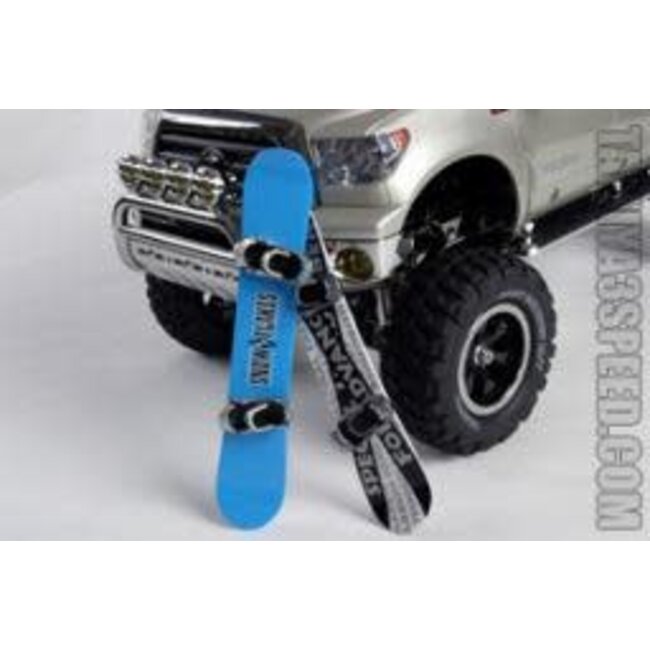

 The roof carrier can hold two snowboards for a fun image. |
|
 Choose from several colorful stickers that are provided for the snowboards. |
|
 Install the Multi-Function Unit MFC-02 (sold separately) and additional LEDs for realistic light and sound effects. |
| Metal Parts Enhance Realism |
 |
|
 |
|
■Left: Differential features tough metal diff gears and can be locked to provide awesome off-road ability. ■Right: 3-speed transmission provides excellent low speed performance and realistic gear changes. A slipper clutch protects the gears from shocks to ensure smooth operation. |
| Specifications ●Length: 500mm, Width: 216mm, Height: 238mm, Weight: Approx. 3.1kg. ●Motor: Type RS540 ●Drivetrain: Shaft-driven 4WD ●Diff. Gear: Front/Rear 2-bevel Diff. ●Suspension: Fron/Rear Leaf Rigid ●Dampers: Front/Rear Friction Dampers ●Gear Ratios: 1：64.39 (Low), 1：35.20 (2nd), 1：21.14 (Top) ●Speed Controller: ESC |
MANUAL DOWNLOAD
