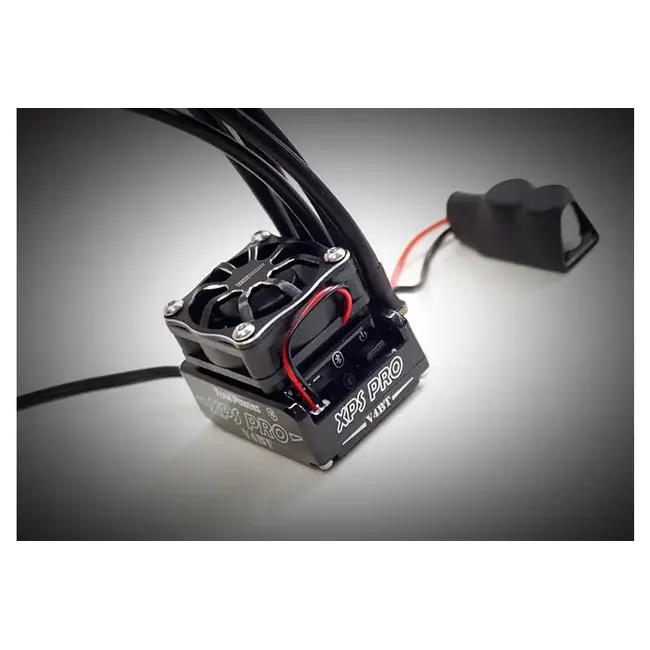

Improvements based on XPS Pro V3:
“See note at end of details”
Hardware:
– Made of light weight plastic casing.
– Requires external Bluetooth device for advanced programming and firmware update through the Mobile APPS.
– APPS will be available on both IOS and Android.
– Change to 32-bit MCU with ultra-smooth, faster response with precise throttle and braking control.
– More top end power with the same item function setup.
– New PCB layout and new internal hardware design increase the heat dissipation and should be around 10’C lower than XPS V3 series working on the same condition.
– Real Time Data Analysis through Mobile APPS(Current Input & Output Throttle, Temperature, RPM, Adv. Timing, Voltage and min. voltage, Max Temperature, RPM & Adv. Timing)
– Built-in one touch On/Off switch
– Change to 30mm fan with fan mount enclosed for better heat dissipating capacity and reliability.
Software:
– Same firmware as Radon Pro V5BT
– Controls: Forward/Brake/Reverse
– Input Voltage: 2S-3S lipo
– BEC: 6V/7.4V selection/max ~4.5A
– Motor Limit: 4.5T or over
– Max current: ~140A per phase
– Size: ~42x32x17mm
– Weight: ~38g (not include wiring and fan)
User Manual Download(Eng Ver):
Click Here to Download
Mode Description Manual Download(Eng Ver):
Click Here to Download
Reference Refer Manual Download(Eng Ver):
Click Here to Download
NOTE : This ESC will be BRCA/ROAR approved or both. Approval pending.
