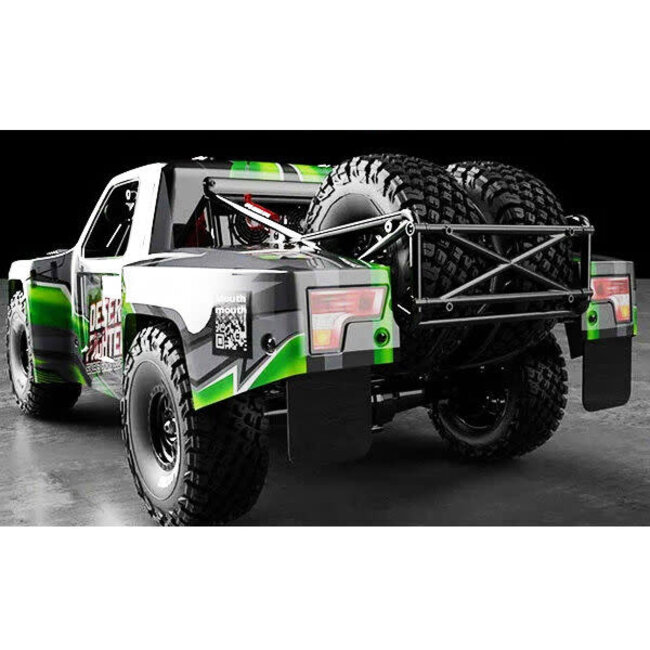

YIKONG YK4072 DF7 1/7 Short-course Truck

I. Product Basic Information

• Brand: YIKONG
• Model: YK4072 V3
• Name: YiKong DESERT FIGHTER (DF7 1/7 rear straight axle desert short-course truck), YIKONG 1:7 scale short-course truck.
• Scale: 1:7
• Colors: red, green

The new design car body painting highlights the speed and power.

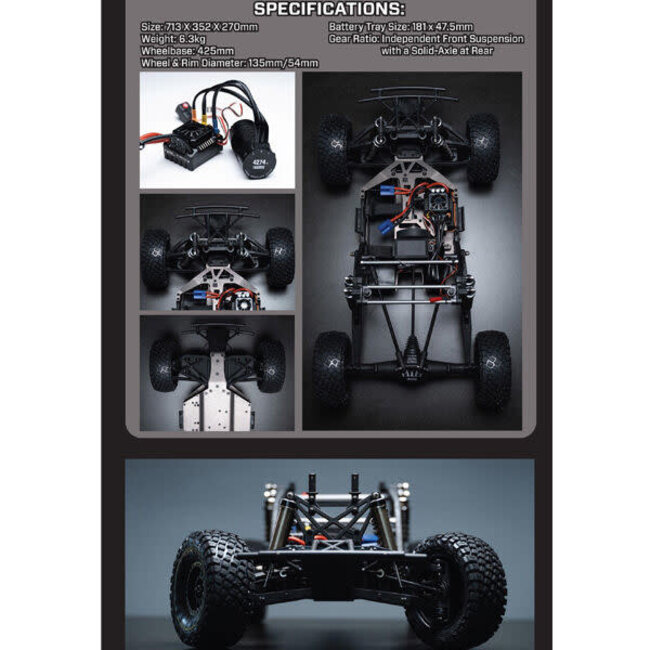

II. Specification Parameters

1. Vehicle size: 713×352×270mm
2. Battery compartment size: 181×47.5mm
3. Weight: 6.3 kilograms
4. Wheelbase: 425mm
5. Wheel and rim diameter: 135mm/54mm
6. Gear ratio: Independent front suspension with a solid axle at the rear.

III. Electronic Configuration

• Transmitter: Standard equipped 5-channel remote controller with gyroscope.
• Motor: 4274 1600KV brushless motor.
• Electronic speed controller (ESC): Hobbywing MAX8 150A/950A waterproof ESC, supporting 3S - 6S lithium batteries.
• Servo: Standard equipped 35KG metal gear servo, effectively resisting the impact on the servo caused by intense driving.

IV. Special Design

1. Transmission and Gears: CNC alloy center differential case with 63T/1.0 module high-strength steel spur gear; finely machined 33/13T module 1.25 spiral steel gear.
2. Suspension and Shock Absorption: Front and rear suspensions are equipped with a total of 8 extra-long stroke aluminum shock absorbers, equipped with progressive springs; CNC aluminum lower front suspension block and 4×110mm steel hinge pin.
3. Motor Installation: CNC aluminum adjustable motor mount, suitable for 42 - 50 size motors.
4. Compatible Servo: Compatible with 30KG class jumbo-size servo or 25KG class standard servo.
5. Body: Impact-resistant one-piece PC body fixed at multiple positions on the roll cage; highly realistic racing tires, equipped with 17mm hexagonal wheel connectors.
6. Chassis: The newly designed aluminum main chassis and upper deck create a completely new three-layer design, providing a lower center of gravity and excellent handling characteristics.

V. Accessories

• 1X RC Car
• 1X Manual
• 1X Screwdriver
• 1X Remote Controller
