Features:
1. Adopting new generation craft on the MOSFET, low heat generation, withstand large current instantly, and high reliability.
2. Adopting high performance 32 bit microprocessor, stronger computing ability and faster running speed.

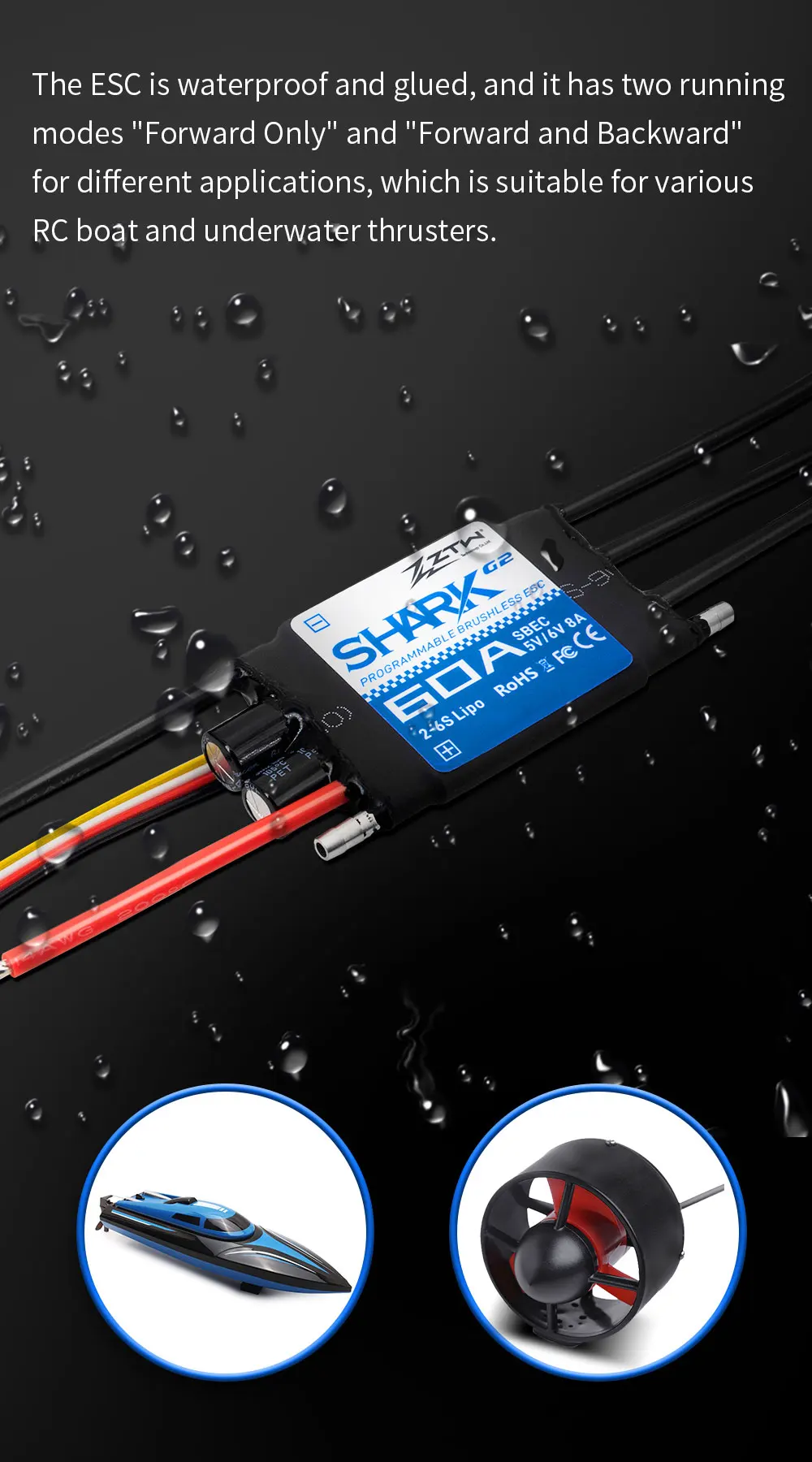

3. The ESC is waterproof and glued, and the flat water-cooling design ensures efficient heat dissipation.
4. Super smooth start-up and accurate throttle linearity make the ESC suitable for all kinds of RC boat models.
5. The ESC has two running modes for different applications:“Forward Only” and “Forward and Backward”.

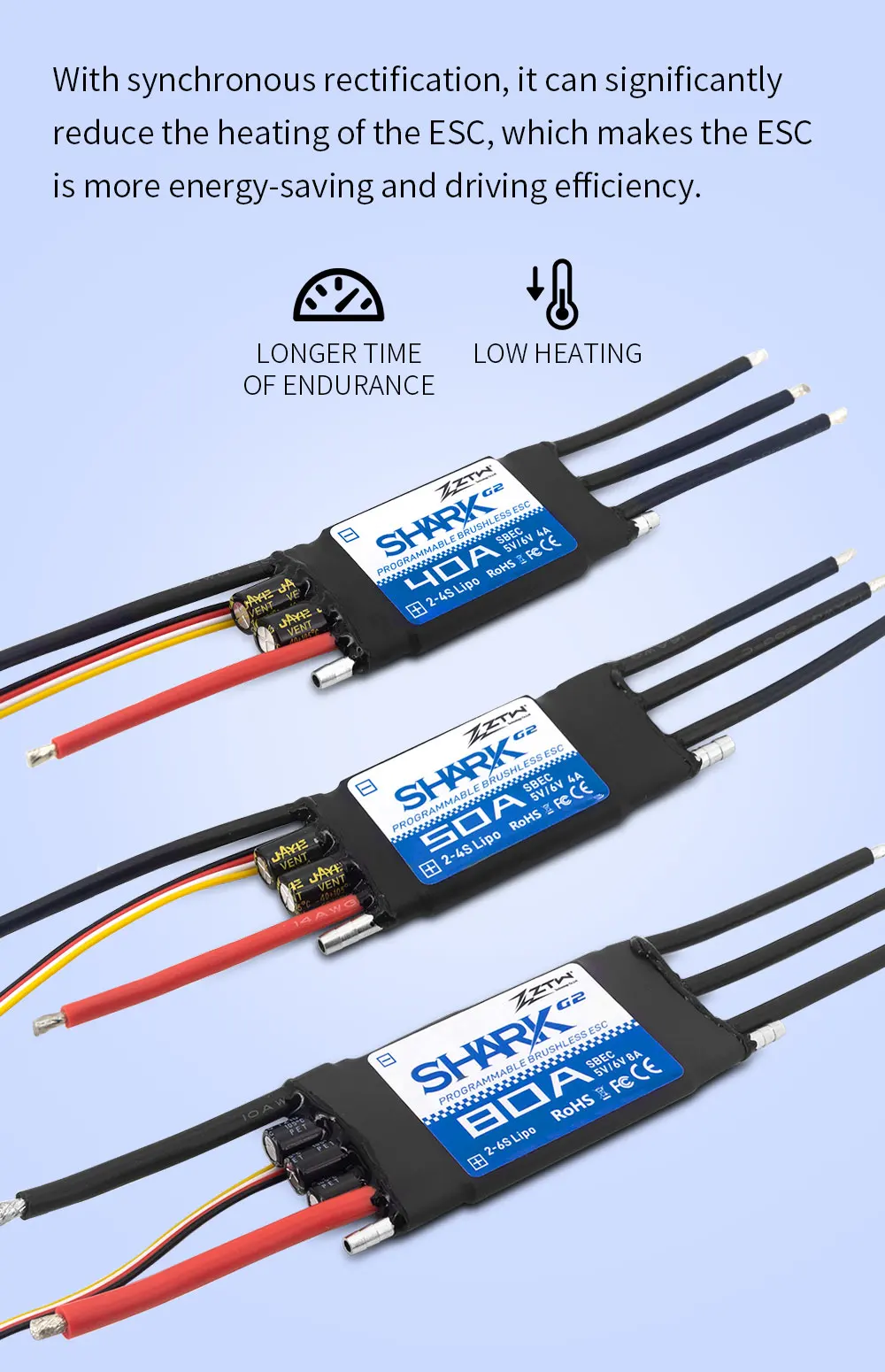

6. Higher driving efficiency and more energy-saving.
7. Adjustable SBEC 5V/6V output voltage provides more powerful power to the servo. (40A/50A/60A/80A/100A have SBEC adjustable)
8. Multiple protections: start-up, over-heat, low-voltage cutoff, signal loss, phase loss.
9. Support high RPM motors, and compatible with most motors in the market.
10. Fully programmable via ZTW new programming box G2.

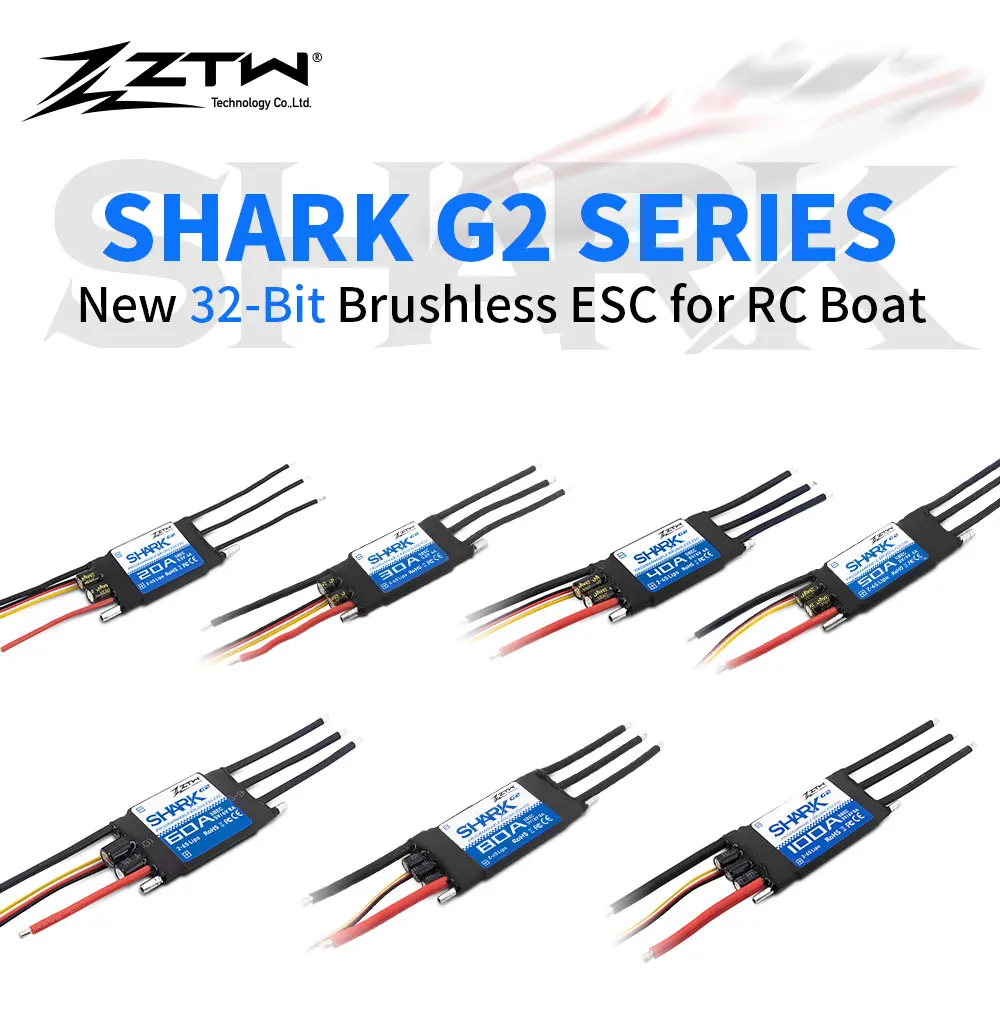

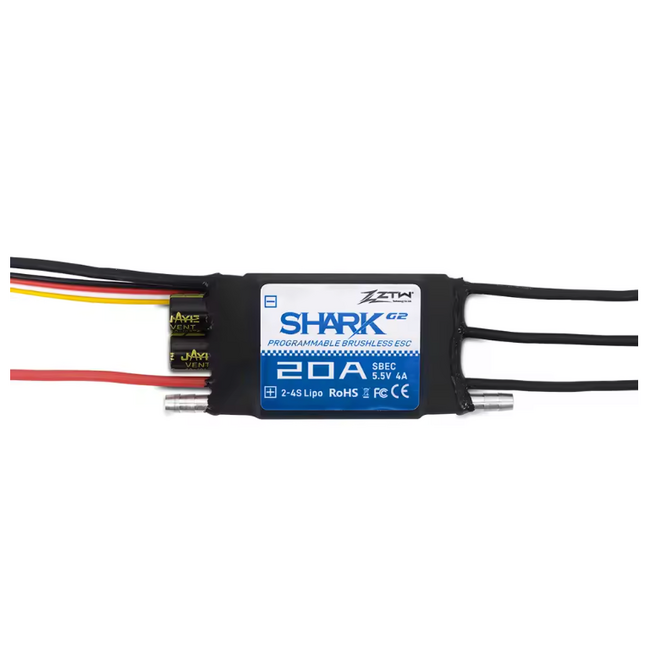

Model: Shark 20A SBEC G2
Cont./Burst Current(A): 20A\30A
Battery cell NiXX\Lipo: 5-12NC\2-4Lipo
BEC Output: 5.5V/4A
Size(L*W*H): 62*30*9mm
Weight(g): 30
Model: Shark 30A SBEC G2
Cont./Burst Current(A): 30A\40A
Battery cell NiXX\Lipo: 5-12NC\2-4Lipo
BEC Output: 5.5V/4A
Size(L*W*H): 62*30*9mm
Weight(g): 31
Model: Shark 40A SBEC G2
Cont./Burst Current(A): 40A\55A
Battery cell NiXX\Lipo: 5-12NC\2-4Lipo
BEC Output: 5V/6V 4A
Size(L*W*H): 75*32*9
Weight(g): 40

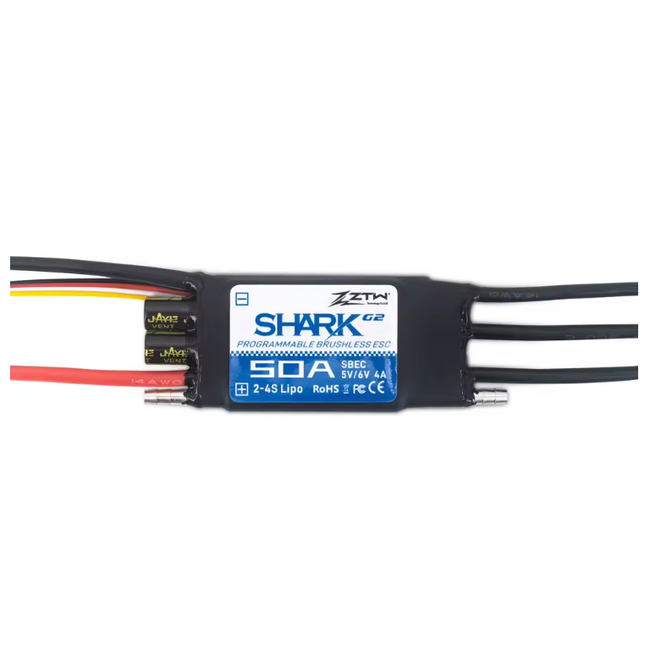

Model: Shark 50A SBEC G2
Cont./Burst Current(A): 50A\65A
Battery cell NiXX\Lipo: 5-12NC\2-4Lipo
BEC Output: 5V/6V 4A
Size(L*W*H): 75*32*9
Weight(g): 41

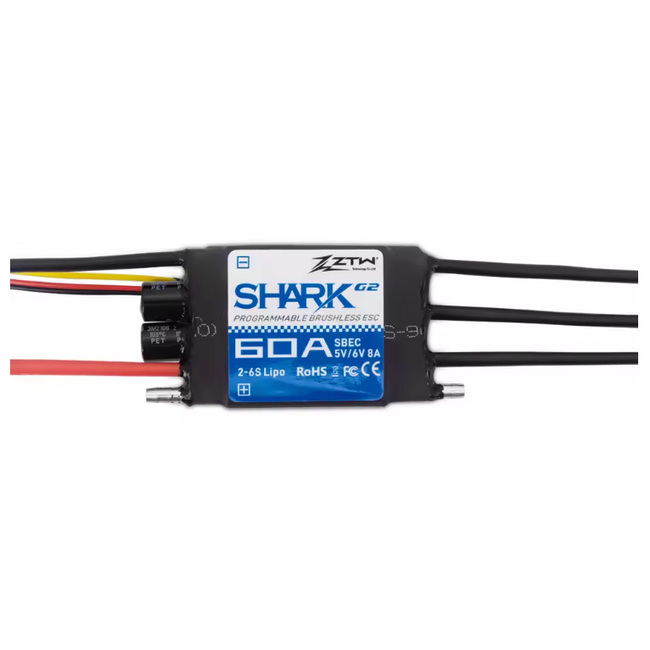

Model: Shark 60A SBEC G2
Cont./Burst Current(A): 60A\80A
Battery cell NiXX\Lipo: 5-18NC\2-6Lipo
BEC Output: 5V/6V 8A
Size(L*W*H): 72*40*12.5
Weight(g): 70

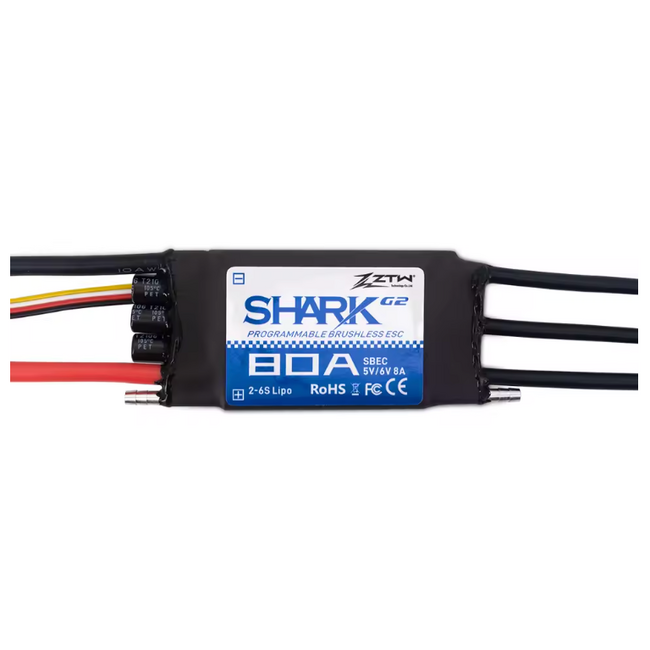

Model: Shark 80A SBEC G2
Cont./Burst Current(A): 80A\100A
Battery cell NiXX\Lipo: 5-18NC\2-6Lipo
BEC Output: 5V/6V 8A
Size(L*W*H): 96*43.5*13
Weight(g): 90
Model: Shark 100A SBEC G2
Cont./Burst Current(A): 100A\120A
Battery cell NiXX\Lipo: 5-18NC\2-6Lipo
BEC Output: 5V/6V 8A
Size(L*W*H): 96*43.5*13
Weight(g): 100

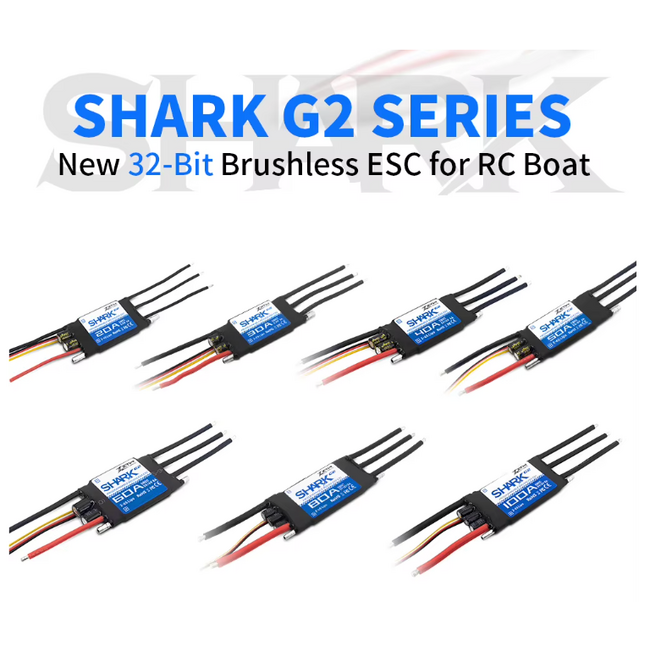

Note: The ZTW Shark G2 series is a whole new series of 32-bit ESC, it can't work with ZTW Air programming card, if you want to change parameters for the ESC, you need to buy the ZTW new LCD program box G2 or using your transmitter, thanks for your attention.
