Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

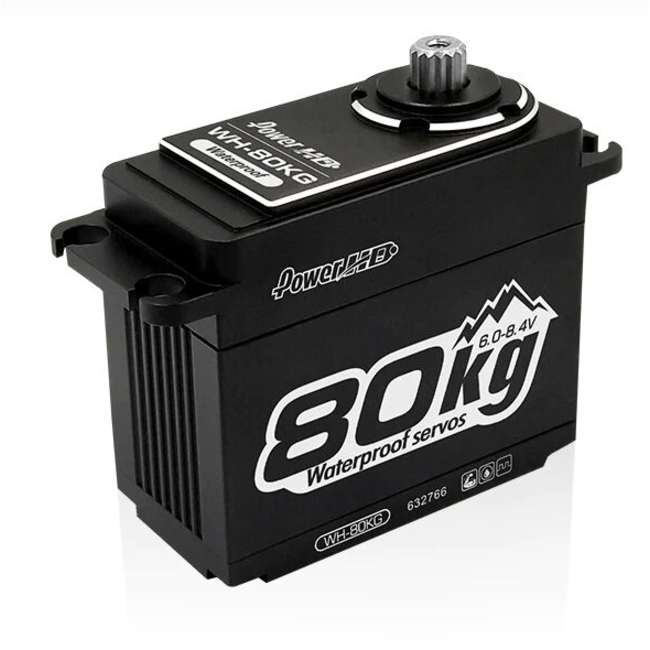

Power HD 1/5 80kg Metal Geared Waterproof Servo
Â
Features
- Genuine Power HD Product
- Suitable for RC cars 1/5 scale on/off road.
- Upper/middle/bottom: Aluminium Case.
Â
Specifications
- Torque (7.4V): 75kg-cm
- Torque (8.4V): 80kg-cm
- Speed: 0.18 sec per 60° (6V)
- Speed: 0.16 sec per 60° (8.4V)
- Operating Voltage: 7.4 ~ 8.4V DC Volts
- Weight: 200 g
- Gear Type: Steel
- Horn Gear Spline: 15T - ⌀ 7.6mmÂ
- Bearing Type: Ball Bearing x 2
- Operating Temperature: -10° ~ 50°
- Operating travel: 90° (1000-2000 μsec)
- Neutral Position: 1500 μsec
- Maximum travel: Approximately 135° (when 800-2200 μsec)
- Mounting Hardware

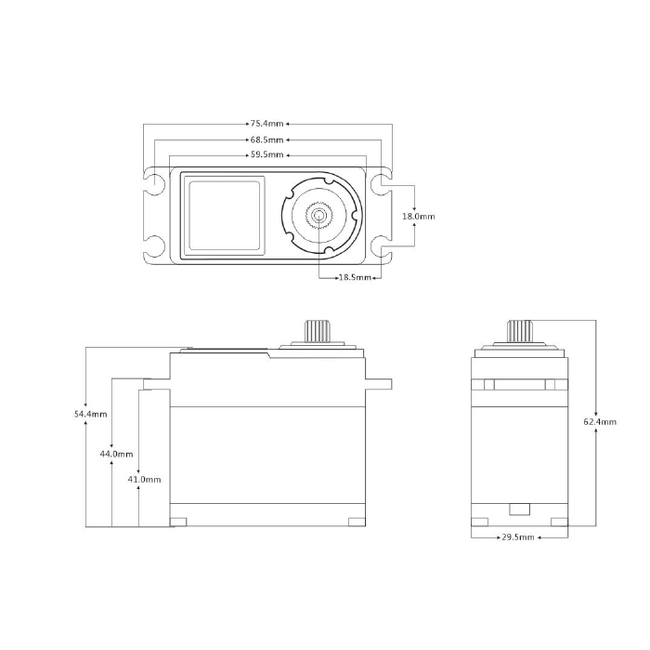

Servo Specifications
- Total Height (A) = 62.4mm
- Body Width (B) = 59.5mm
- Below Mount (C) = 41.0mm
- Above Mount (D) = 21.4mm
- Total Length (E) = 75.4mm
- Total Width (F) = 29.5mm
