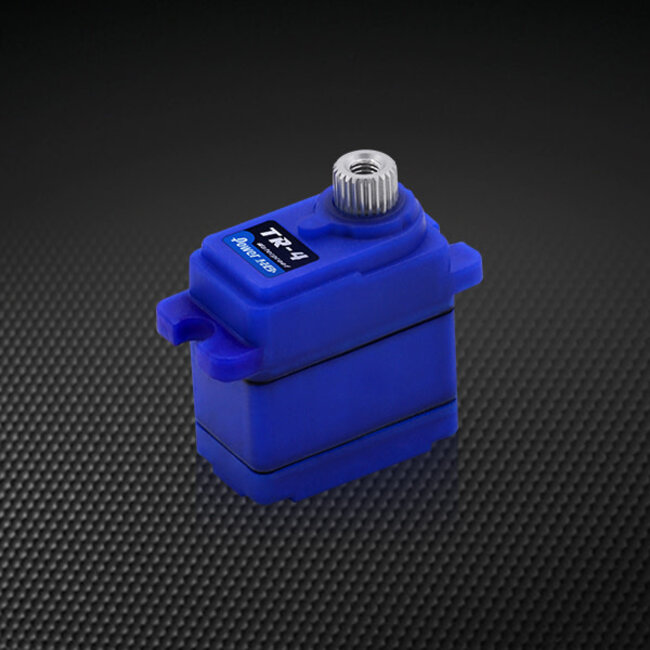

New from Power HD the TR-4! Having compatibility with high voltage 6V-8.4V, at 7.4V input the servo pulls up to 2.6kg-cm of torque at a speed of down to 0.10s. A long 35cm receiver wire and mini size of 22.5 x 12.5 x 24.0 mm ensures the servo is a direct fit in crawler Traxxas TRX-4 Crawler Range! The TR-4 servo comes with 25T metal spline and special gaskets making it waterproof for go-everywhere capabilities.
Specifications
- Torque(4.8V): 1.8 kg-cm (25.0 oz/in)
- Torque(6.0V): 2.2 kg-cm (30.6 oz/in)
- Torque(7.4V): 2.6 kg-cm (36.1 oz/in)
- Speed: 0.15 sec (4.8V) ? 0.12 sec (6.0V) ? 0.10 sec (7.4V)
- Operating Voltage?4.8 ~ 7.4 DC Volts
- Weight: 16.0 g (0.56 oz)
- Gear Type?Copper&Alu
- Operating Temperature: -20?~60?
- Working frequence?1520?s / 50hz
- Size?22.5 x 12.5 x 24.0 mm ( 0.89 x 0.49 x 0.94 in)
Power HD TR-4 Servo Specifications
- Total Height (A) = 29mm
- Body Width (B) = 22.8mm
- Below Mount (C) = 15.5mm
- Above Mount (D) = 11.5mm
- Total Length (E) = 29.7mm
- Total Width (F) = 12.8mm
