Features:
•Water-proof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
•External programming port, easy to connect to the Program Card when setting the ESC;
• Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment;
• 9 steps of acceleration(punch) adjustment from “soft” to “Very aggressive” to fit for different kinds of models, tires and tracks;
• Multiple protections: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor lock-up protection;
• High-quality materials, high-temperature resistant metal shell and wire
• Durable bearings, high torque and low noise
• Brushless 3650 motor, 3600KV 4500KV 5200KV are optional

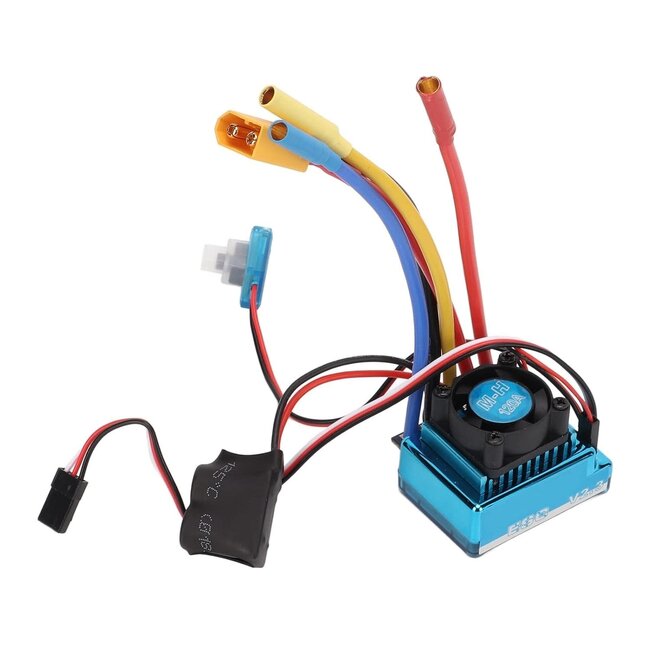

120A ESC
Specifications:
motor 3650
Specifications:
Body Length: 50mm / 1.97in
Motor Diameter: 36mm / 1.42in
Motor Shaft Length: 15mm / 0.59in
Shaft Diameter: 3.175mm / 0.12in
Use voltage: 2-4S
Motor KV: 3600KV 4500KV 5200KV
No-Load Current(11.1V): 2.0A / 2.8A / 3.7A
Max Continuous Current: 70A / 75A / 95A
Max Continuous Power: 900W
Weight: about 163g
Suit For: RC Car / Boat
