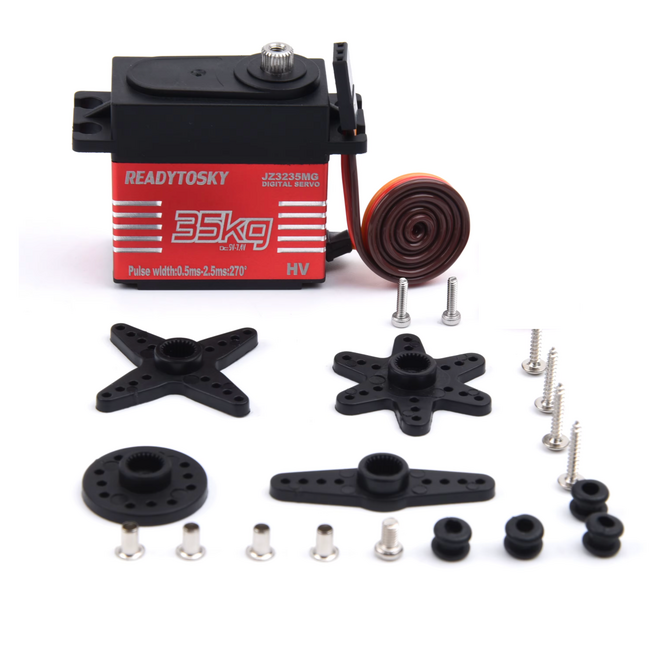

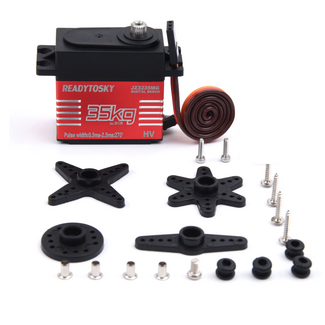

35KG Motor Core servo Specifications:

Model: JZ3235MG Pro

Item Name: JZ3235MG pro Digital Servo ;

Rotation angle:180 / 270 degree

Dead Band: 3μsec

Operating Voltage: 5.0V~7.4V

Operating Speed (6V): 0.19sec / 60° at no load ;

Operating Speed (7.4V): 0.17sec / 60° at no load ;

Stall Torque (6V): 35 kg/cm

Stall Torque (7.4V): 39 kg/cm

Motor: Motor core

Motor Type: Carban Brush Motor

Gear Type: Copper & Aluminum

Working Frequency: 1520μs / 333hz

CE Certification: Yes

Size: 40.5 * 40 * 20.2mm

Weight: 73g
